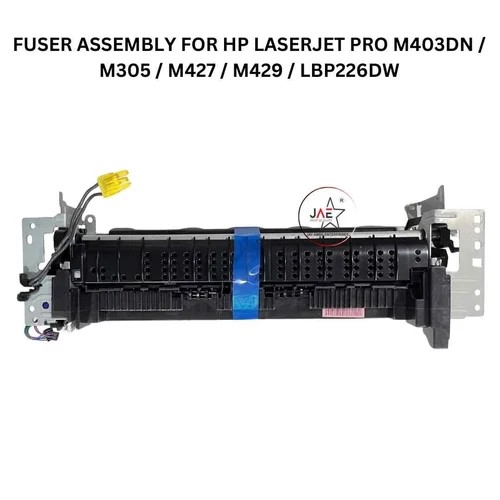

HP LaserJet M403 M427 Fuser Assembly (RM2-2554-000)

About HP LaserJet M403 M427 Fuser Assembly (RM2-2554-000)

The HP LaserJet Pro M403 Fuser Unit(Part Numbers: RM2-2554-000, RM2-5399-000CN, or RM2-5425) is the critical engine component responsible for the final stage of the laser printing process. It uses a combination of intense heat and calibrated pressure to permanently bond toner powder into the fibers of the paper, ensuring smudge-free, professional-quality documents.

Core Functions & Mechanism

Thermal Bonding: The unit melts plastic-based toner particles onto the media as it passes between a heated roller (or film) and a pressure roller.
Cooling & Solidification: After fusing, the paper continues through the assembly to allow the toner to solidify quickly, which prevents "ghosting" or toner flaking.
Media Handling: It plays a vital role in the paper path; a worn fuser is often the primary cause of repeated paper jams or "crinkled" output.

Technical Specifications

Attribute	Detail
Compatible Models	HP LaserJet Pro M403n, M403d, M403dn, M403dw (also fits M402 and M427 series)
Estimated Life	Approximately 80,000 to 100,000 pages (dependent on usage)
Voltage	Available in 110V/120V (standard for US/India) or 220V versions
Weight	Approximately 0.8 kg to 1.1 kg
Key Components	Upper fuser film/roller, lower pressure roller, heating element, thermistor, and drive gears
