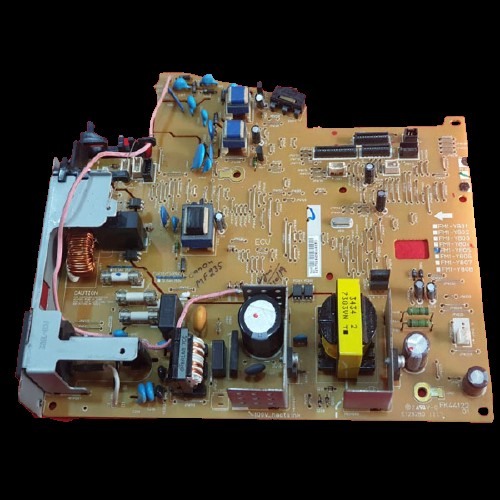

Canon MF244DW MF232W MF246DN MF249DW Printer Power Supply Board (FM1-Y814 / FM1-Y813)

Canon MF244DW MF232W MF246DN MF249DW Printer Power Supply Board (FM1-Y814 / FM1-Y813) Specification

Size
Approx. 16 x 8 cm

Year Built
2023

Model No
FM1-Y814, FM1-Y813

Lead Time
Ready Stock / 2-5 Days

Power Source
AC Power

Capacity
Standard power load for printer circuit

Pattern
Standard electronic pattern

Color
Green PCB

Product Type
Power Supply Board

Height
Approx. 2 cm

Print Technology
Laser

Weight
Approx. 120g

Storage Instructions
Store in a dry, static-free environment

For Use In
Canon MF244DW, MF232W, MF246DN, MF249DW

Compatible Brand
Canon

Features
High durability, precise fit, easy installation

Printer Type
Laser Printer

Output Voltage
DC multi-output (see device label)

Packaging
Antistatic sealed packaging

Board Type
SMPS (Switch Mode Power Supply)

Condition
New, Non-Refurbished

Installation
OEM fit, plug and play

Protection
Overload, short circuit, overvoltage protection

Part Number
FM1-Y814 and FM1-Y813

Input Voltage
220V AC

About Canon MF244DW MF232W MF246DN MF249DW Printer Power Supply Board (FM1-Y814 / FM1-Y813)

The power supply for the

Canon imageCLASS MF244dw

(and related MF244dn models) is an internal Switched-Mode Power Supply (SMPS) or DC board that converts AC input into regulated DC voltages for the printer's components.

Technical Specifications

Part Numbers: Primarily identified by FM1-Y813 or FM1-Y814, with alternate variations including FM1-J948 and FM1-Y805M.
Input Requirements: Compatible with 220240V AC at 50/60 Hz (standard for many regions) or 110127V AC at 50/60 Hz depending on the specific regional model.
Output: Provides a regulated 24V DC output to the engine and logic boards.
Power Consumption:

Maximum: 1,150 W.
Standby: 4.1 W.
Sleep Mode: 1.1 W to 2.0 W depending on connection type.

Key Functions and Compatibility

Distribution: Supplies stable power to the formatter, engine control, and scanner units.
Safety: Includes surge protection to prevent damage from voltage fluctuations.
Device Compatibility: This power board is commonly interchangeable with other models in the same series, such as the Canon imageCLASS MF232w, MF226dn, and MF249dw

Reliable OEM Replacement for Canon Laser Printers

The FM1-Y814 / FM1-Y813 Power Supply Board is specifically crafted for Canon MF244DW, MF232W, MF246DN, and MF249DW laser printers. Engineered for durability and precise fit, this SMPS board operates efficiently under standard power loads, offering optimal compatibility and performance. Its green PCB and robust build ensure your printing operations remain uninterrupted.

Safety and Durability with Advanced Protection

Equipped with advanced overload, short circuit, and overvoltage protection circuitry, this power supply board significantly enhances the safety and dependability of your printer. Manufactured in 2023, it meets high quality standards and is intended to last, reducing downtime and maintenance hassles for both home and office environments.

Hassle-Free Installation and Storage

Designed as a plug-and-play component, the FM1-Y814 / FM1-Y813 is easy to install without any specialized technical skills. The antistatic sealed packaging guarantees that the board remains protected during transit and storage. Always store this part in a dry, static-free environment to maintain its longevity and reliability.

FAQ's of Canon MF244DW MF232W MF246DN MF249DW Printer Power Supply Board (FM1-Y814 / FM1-Y813):

Q: How do I install the Canon MF244DW MF232W MF246DN MF249DW Power Supply Board?

A: The FM1-Y814 / FM1-Y813 power supply board is designed for plug-and-play installation. Simply disconnect your printer from the power source, remove the old power board, and replace it with the new one, ensuring a secure OEM fit. Always refer to your printer's service manual for detailed installation guidance.

Q: What protection features does this power supply board offer?

A: This Canon power supply board incorporates overload, short circuit, and overvoltage protections, safeguarding your printer's circuitry against common electrical faults and ensuring prolonged, stable performance.

Q: When should I replace the printer's power supply board?

A: Consider replacing your printer's power supply board if you experience power issues such as failure to turn on, frequent shutdowns, or error signals related to power supply. Installing a new FM1-Y814 / FM1-Y813 board restores your printer's normal function.

Q: Where is this power supply board suitable for use?

A: This power board is designed exclusively for use in Canon laser printers-specifically the MF244DW, MF232W, MF246DN, and MF249DW models. Its precise engineering ensures compatibility with these printers.

Q: What is the process for safely storing this power supply board?

A: Store the new board in its original antistatic sealed packaging, in a dry, static-free environment to protect against moisture and static electricity, preserving its function and longevity until installation.

Q: What are the main benefits of using this OEM power supply board?

A: By using an OEM FM1-Y814 / FM1-Y813 board, you ensure high durability, perfect fit, and optimal power management for your Canon printer. This minimizes the risk of malfunctions and extends the printer's service life.

Q: How quickly can I receive this power supply board after placing an order?

A: The board is available as ready stock, with typical lead times ranging from immediate dispatch up to 2-5 days, making it an efficient option for urgent repair and maintenance needs within India.
