PLQ20 POWER SUPPLY

PLQ20 POWER SUPPLY Specification

Noise Level
Low

Height
38mm

For Use In
Electronic Devices

Compatible Brand
Universal

Product Type
Power Supply

Color
Grey

Lead Time
2-4 Days

Year Built
2023

Storage Instructions
Store in dry environment

Model No
PLQ20

Power Source
AC

Weight
110g

Connectivity Type
Wired

Size
77mm x 40mm x 38mm

Pattern
Rectangular

Capacity
20W

Features
Short Circuit Protection, Overload Protection, High Efficiency, Long Life

Output Current
0.83A

Mounting Type
Panel Mount

Operating Temperature
-20C to +60C

Output Voltage
DC 24V

Input Voltage
AC 110-240V

Frequency
50/60Hz

About PLQ20 POWER SUPPLY

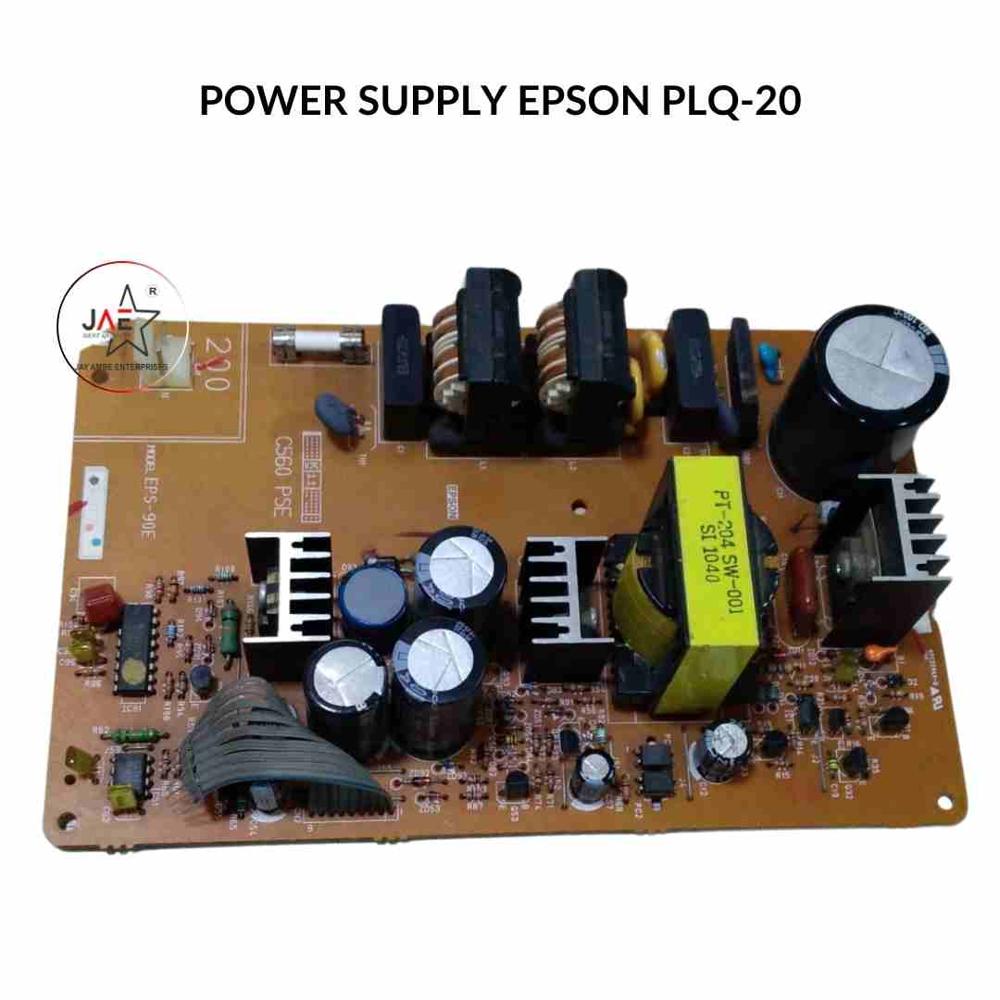

The Epson PLQ-20 power supply (Part Number 2087561) is a specialized, durable switch-mode power supply (SMPS) designed for Epson PLQ-20 and PLQ-30 passbook printers. Operating at 220V with a 24V output, it provides stable power for high-duty, impact dot matrix printing in banks and government offices.

Compatibility: Designed for Epson PLQ-20, PLQ-20D, PLQ-20M, PLQ-20DM, PLQ-22, and PLQ-30.
Input Voltage: 100 V - 220 V AC, 50-60 Hz.
Output Voltage: Typically 24V (some variants or specific components might specify 5V).
Part Number: 2087561.
Usage: Suitable for repairing printer power failure, shutdown, or low-voltage issues.
Design: Single-sided board, typically compact and engineered for reliable operation.

Versatile Power Supply for Modern Needs

The PLQ20 Power Supply is engineered to meet the demands of contemporary electronics. It offers a broad input voltage range and stable 24V DC output, making it suitable for a variety of devices. Its compact dimensions and reliable protection features provide ease of installation and enhanced safety for users.

Enhanced Protection and Efficiency

Equipped with short circuit and overload protection, the PLQ20 ensures your devices operate safely with minimal downtime. Its efficient design extends product life, reduces energy waste, and remains operational across a wide range of temperatures, making it a dependable choice for critical applications.

Universal Application, Easy Integration

Designed for universal compatibility, the PLQ20 fits seamlessly into panels of many electronic devices. Its panel mount type and wired connectivity allow for straightforward installation. Suitable for use by manufacturers, suppliers, and retailers, it serves as a robust solution for electronic device power needs.

FAQ's of PLQ20 POWER SUPPLY:

Q: How do I install the PLQ20 Power Supply in my electronic device?

A: The PLQ20 is designed for panel mounting. Secure the unit onto your device's panel using appropriate fasteners and connect the wiring as per the provided instructions, ensuring correct AC input and DC output connections.

Q: What are the main benefits of using the PLQ20 Power Supply?

A: The PLQ20 offers high efficiency, short circuit and overload protection, low noise operation, and a long lifespan, ensuring reliable power delivery and safeguarding your electronic devices from power irregularities.

Q: When should I replace the PLQ20 Power Supply?

A: Replace the PLQ20 if you notice signs of malfunction such as fluctuating output voltage, physical damage, or if it no longer meets the performance requirements of your application.

Q: Where can the PLQ20 Power Supply be used?

A: The PLQ20 is suitable for a wide range of electronic devices requiring a 24V DC power source. It is compatible with any brand, and ideal for use in industrial, commercial, and retail electronics across various sectors in India.

Q: What is the recommended process for storing the PLQ20 Power Supply?

A: Store the PLQ20 in a dry environment away from moisture and dust to preserve its performance and longevity. Avoid exposing it to extreme temperatures outside its specified operating and storage range.

Q: How does PLQ20 Power Supply ensure device safety?

A: It incorporates advanced protection features such as short circuit and overload protection, preventing damage to connected devices and reducing the risk of system failure.

Q: What makes the PLQ20 Power Supply a high-efficiency solution?

A: The PLQ20's design minimizes energy losses during power conversion, operating efficiently over a wide voltage and temperature range. This helps reduce operational costs and extends the life of both the power supply and the equipment it powers.
