HP LaserJet Pro M202 / M202DN / M202DW Power Supply Board / DC Board

HP LaserJet Pro M202 / M202DN / M202DW Power Supply Board / DC Board Specification

For Use In
HP LaserJet Pro M202, M202DN, M202DW

Printer Type
LaserJet

Storage Instructions
Store in dry, dust-free environment

Size
OEM fit

Lead Time
1-2 days

Features
Genuine replacement part, high durability, precise voltage regulation

Compatible Brand
HP

Pattern
OEM PCB layout

Print Technology
Laser

Height
Standard fitment for HP M202 series

Year Built
2023

Model No
M202 PSU / RM2-6931

Color
Green (PCB)

Noise Level
Silent operation

Power Source
AC 220-240V, 50/60Hz

Capacity
Standard

Product Type
Power Supply Board / DC Board

Weight
Approx 150 grams

Package Contents
1 x Power Supply / DC Board

Condition
New

Compatibility
HP LaserJet Pro M202, M202DN, M202DW

Input Voltage Range
AC 220-240V

Installation
Professional Installation Recommended

RoHS Compliant
Yes

Output Voltage
DC Multi-output for Printer Logic

Assembly Type
Fully assembled with connectors

Operating Temperature
0C to 40C

Part Number
RM2-6931

Board Type
Switching Power Supply PCB

About HP LaserJet Pro M202 / M202DN / M202DW Power Supply Board / DC Board

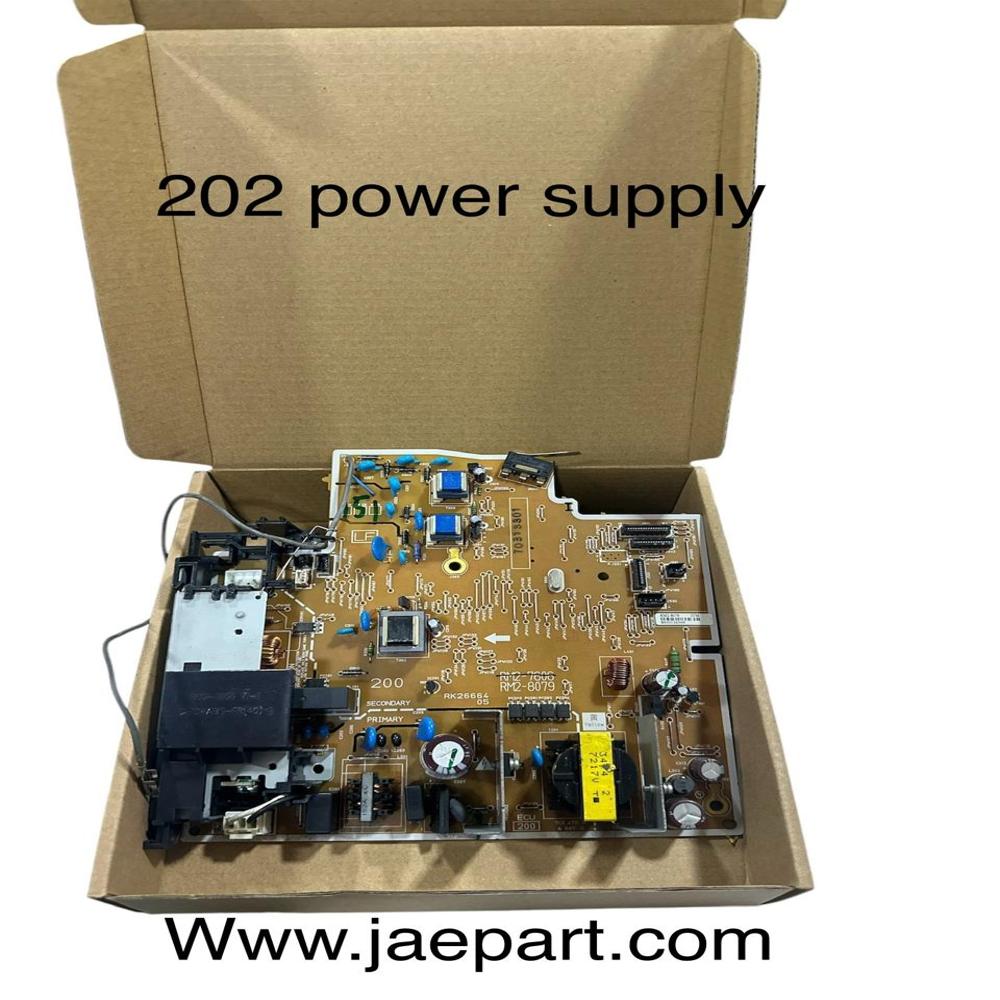

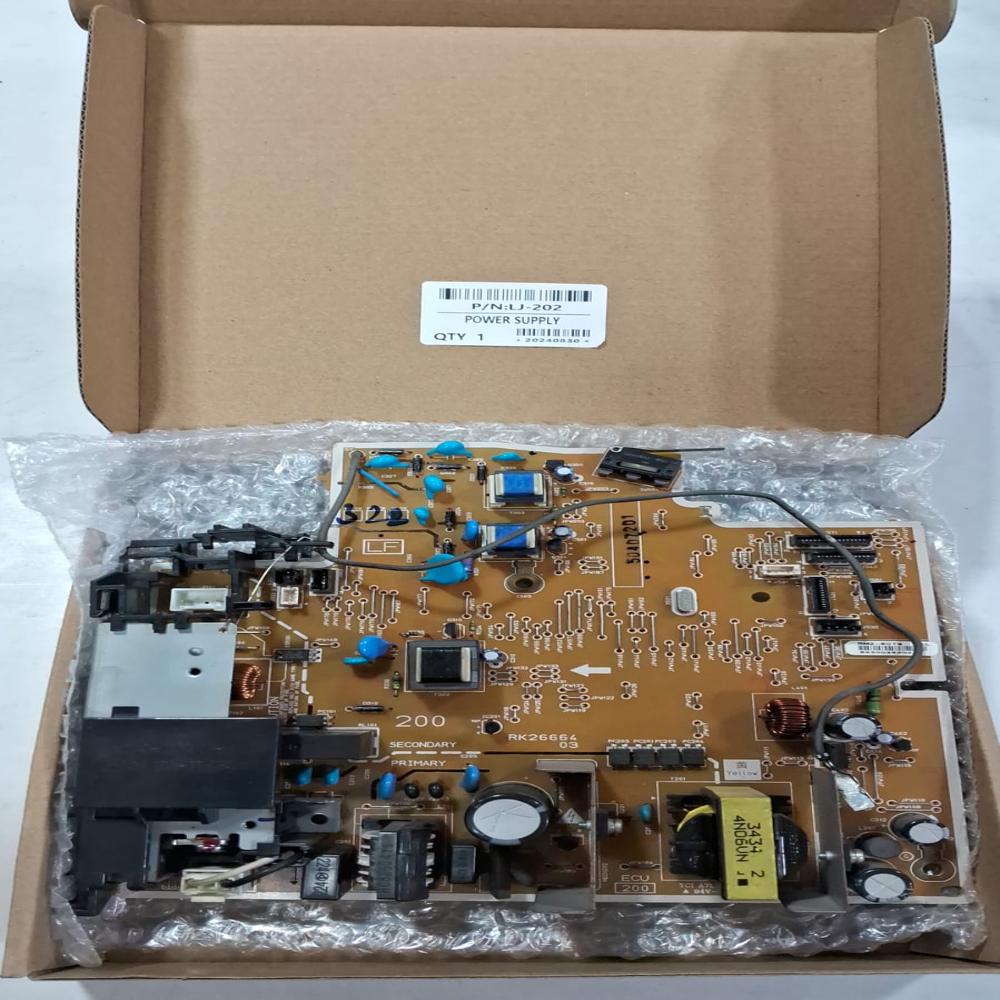

The HP 202 Power Supply Board (also known as a DC Card or SMPS Board) is an internal component designed primarily for the HP LaserJet Pro M202 printer series. It is responsible for converting AC input from a wall outlet into the stable DC voltages required to power the printer's mechanical and electronic components.
Technical Specifications

Input Voltage: Typically available in 110V or 220V variants, depending on the specific part number.
Output Power: Approximately 200W to 450W during active printing.
Output Voltage: Provides a standard 24V DC output for printer operations.
Part Numbers: Common identifiers include RM2-8079, RM2-7605-000, RM2-7606, and CZ229-60001.
Weight: Approximately 686g to 800g.

Compatibility

This power supply board is cross-compatible with several HP LaserJet Pro models, including:

M202 Series: M202n, M202dw, M202dn, M202d.
Other Series: M201, M225, and M226.

Key Features

Stable Power Delivery: Engineered to minimize downtime and ensure seamless printing operations by providing consistent energy distribution.
Build Quality: Often constructed with Metal Core PCBs or durable PVC materials to meet or exceed OEM performance standards.
Replacement Use: Primarily used to resolve power-related issues, such as a printer failing to turn on or experiencing intermittent power loss.

Precision OEM Power Supply Replacement

Engineered as a genuine replacement part for the HP LaserJet Pro M202, M202DN, and M202DW, this power supply board delivers consistent, precise voltage regulation to maintain the optimal function of your printer's logic circuits. Its OEM-fit design guarantees compatibility and reliability, supporting seamless printer performance.

High Quality and Durable Build

Constructed for durability and longevity, the board includes robust components and meets RoHS compliance standards, ensuring safety and environmentally conscious operation. The silent operation and standard fitment address the typical requirements of office environments, making it an ideal solution for printer maintenance professionals.

FAQ's of HP LaserJet Pro M202 / M202DN / M202DW Power Supply Board / DC Board:

Q: How do I install the HP LaserJet Pro M202 Power Supply Board (RM2-6931)?

A: The board comes fully assembled with connectors, but we strongly recommend professional installation. Incorrect installation may lead to malfunction or damage. Please consult a qualified technician or authorized service center for proper setup.

Q: What printers are compatible with this power supply board?

A: This board is compatible exclusively with HP LaserJet Pro M202, M202DN, and M202DW printers. It's designed as a direct OEM replacement for these models, ensuring proper fit and function.

Q: When should I replace my printer's power supply board?

A: Replace the power supply board if your printer exhibits power issues, frequent shutdowns, or fails to turn on despite a working power source. Professional diagnostics are recommended to confirm that the board is the issue before replacement.

Q: Where should I store the new power supply board before installation?

A: Store the power supply board in a dry, dust-free environment as recommended. Proper storage preserves the board's integrity and functionality until installation.

Q: What is the benefit of using a genuine HP replacement power supply board?

A: Opting for a genuine HP OEM board ensures high durability, precise voltage regulation, silent operation, and guaranteed compatibility. This reduces downtime and maintains your printer's optimal performance.
