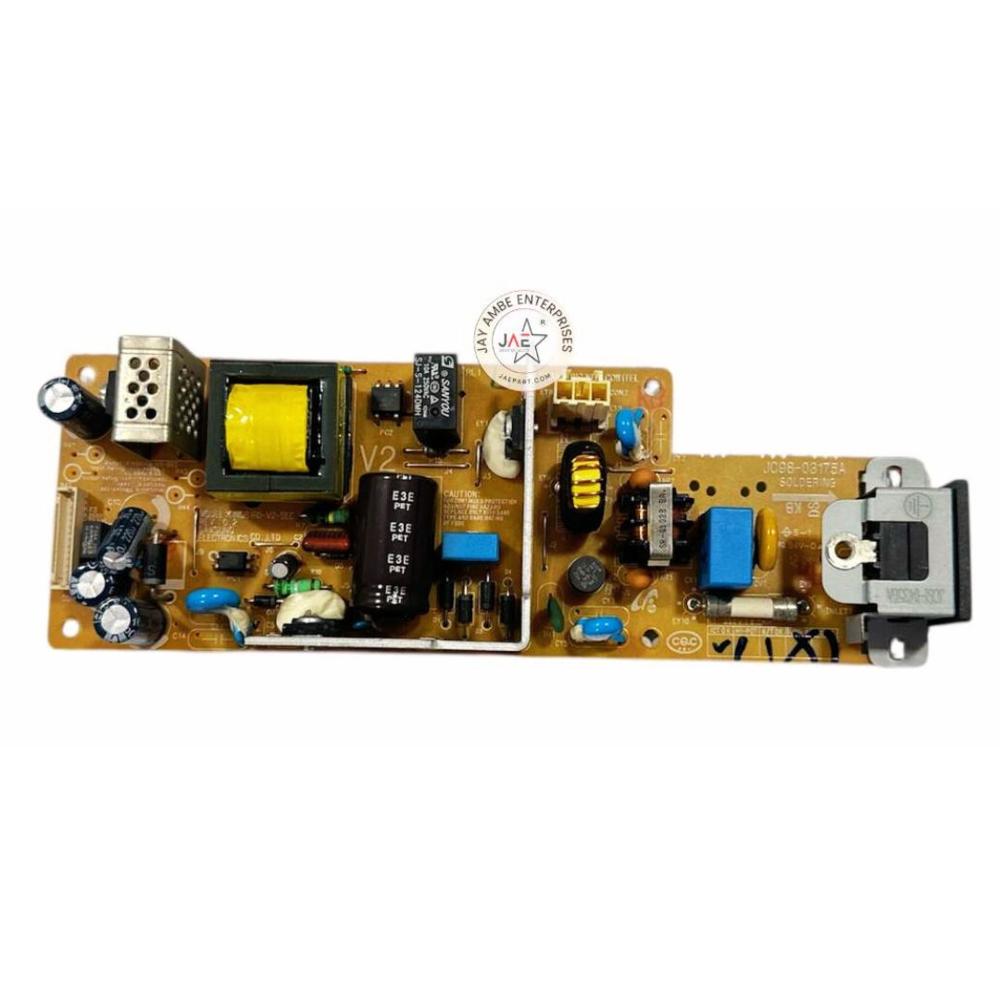

Samsung Xpress SL-M2876ND M2830DW M2826ND 2876 Printer Power Supply Board

Samsung Xpress SL-M2876ND M2830DW M2826ND 2876 Printer Power Supply Board Specification

Paper Size
Printer Dependent

Storage Instructions
Store in dry, static-free environment

For Use In
Samsung Xpress SL-M2876ND, M2830DW, M2826ND

Size
Standard OEM Fit

Capacity
Standard (Board Only)

Printing Speed
Printer Dependent

Weight
Approx. 250g

Lead Time
1-3 working days

Compatible Brand
Samsung

Power Source
AC 220-240V / 110V (region specific)

Print Technology
Laser

Model No
SL-M2876ND, M2830DW, M2826ND Power Supply Board

Height
Approximately 2.5 cm

Features
High quality replacement, OEM specifications, stable power distribution

Year Built
2023

Color
Green (PCB)

Product Type
Power Supply Board

Printer Type
Laser Printer

Pattern
OEM Circuit Board Pattern

Package Contents
1 x Power Supply Board (no accessories)

OEM Part No.
JC44-00262A / JC44-00260A (verify for model)

Output Voltage
24V DC, 5V DC (typical for mainboard and drive circuits)

Board Material
FR4 high-quality PCB

Input Voltage
AC 220-240V ~50/60Hz (region specific)

Operating Temperature
0C to 40C

Condition
New, Unused

Installation
Direct fit, plug and play replacement

About Samsung Xpress SL-M2876ND M2830DW M2826ND 2876 Printer Power Supply Board

The Epson PLQ-20 power supply (Part Number 2087561) is a specialized, durable switch-mode power supply (SMPS) designed for Epson PLQ-20 and PLQ-30 passbook printers. Operating at 220V with a 24V output, it provides stable power for high-duty, impact dot matrix printing in banks and government offices.

Key Features and Specifications:

Compatibility: Designed for Epson PLQ-20, PLQ-20D, PLQ-20M, PLQ-20DM, PLQ-22, and PLQ-30.
Input Voltage: 100 V - 220 V AC, 50-60 Hz.
Output Voltage: Typically 24V (some variants or specific components might specify 5V).
Part Number: 2087561.
Usage: Suitable for repairing printer power failure, shutdown, or low-voltage issues.
Design: Single-sided board, typically compact and engineered for reliable operation.

These boards are essential for maintaining, for instance, high productivity and consistent print quality in passbook printers

Effortless Installation and Compatibility

Designed as a direct-fit, plug-and-play replacement, this power supply board allows for quick and easy installation without the need for complex modifications. Carefully engineered to OEM specifications, it matches the original footprint and connectors, ensuring reliable compatibility with Samsung Xpress SL-M2876ND, M2830DW, and M2826ND models.

Robust Performance and Durable Construction

Built on high-quality FR4 PCB material, this board provides consistent power output and ensures long-term operational stability. It adheres to OEM part numbers JC44-00262A / JC44-00260A, delivering 24V DC and 5V DC for critical printer functions. Its robust design helps maintain optimal printer performance and safeguards sensitive components.

Safe Usage and Reliable Power Distribution

Operating within a temperature range of 0C to 40C, the power supply board is ideal for standard office and commercial environments. The board should be installed in a dry, static-free area to avoid damage and maximize lifespan. Benefit from stable power delivery, minimizing printer downtime and supporting high-quality print results.

FAQ's of Samsung Xpress SL-M2876ND M2830DW M2826ND 2876 Printer Power Supply Board:

Q: How do I install the Samsung Xpress SL-M2876ND M2830DW M2826ND Power Supply Board?

A: This board is designed as a direct-fit, plug-and-play replacement for specified Samsung models. Simply disconnect the printer from power, remove the old board, and connect the new board using the matching connectors. No special tools or modifications are required.

Q: What models is this power supply board compatible with?

A: This power supply board is compatible with Samsung Xpress SL-M2876ND, M2830DW, and M2826ND laser printers. It is important to verify your printer's model and the OEM part number (JC44-00262A / JC44-00260A) before purchase.

Q: When should I replace my printer's power supply board?

A: Replace the power supply board if your printer exhibits power issues, fails to turn on, or shows signs of an unstable power supply. Faulty boards can also result in printing malfunctions and frequent errors.

Q: Where should the power supply board be stored before installation?

A: To ensure its integrity, store the board in a dry, static-free environment until installation. Avoid exposure to moisture or high static areas to prevent damage.

Q: What are the benefits of using this OEM replacement board?

A: Using this OEM-specification replacement ensures reliable power delivery to your printer's critical components, reduces downtime, and maintains optimal print quality. It also extends the lifespan of your device by preventing electrical inconsistencies.
