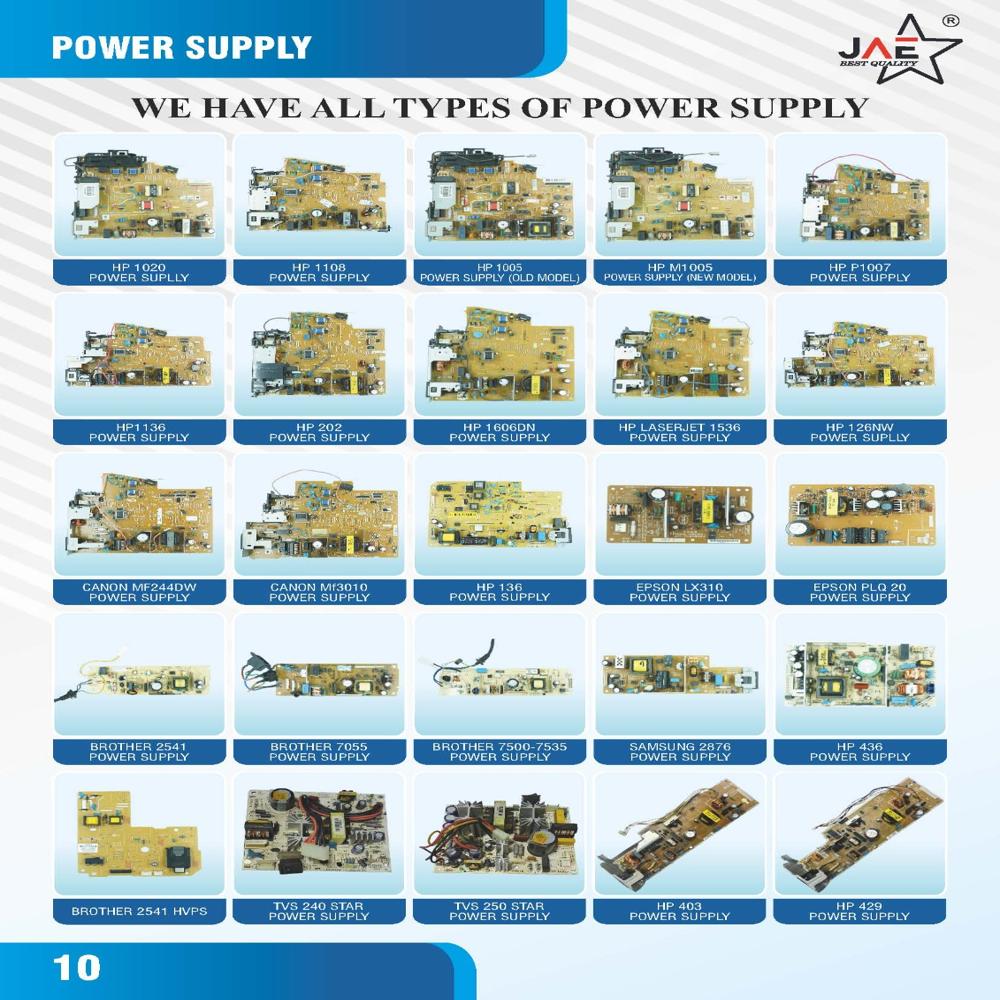

Hp M403dw Power Supply Board

Hp M403dw Power Supply Board Specification

Connectivity Type
Board Integrated - Not Standalone

Height
As per OEM Specification

For Use In
HP LaserJet Pro M403dw

Features
Stable Voltage Output, Overcurrent Protection, OEM Quality

Print Technology
Laser

Noise Level
Silent Operation

Size
OEM Standard

Printing Speed
Depends on Printer Model

Capacity
Standard

Lead Time
1-3 Working Days

Power Source
AC - via Printer

Product Type
Power Supply Board

Year Built
2023

Weight
Approximately 120g

Model No
M403dw Power Supply Board

Printer Type
Monochrome Laser Printer

Compatible Brand
HP

Pattern
OEM PCB Layout

Storage Instructions
Store in Dry and Static-free Environment

Color
Green (PCB) with Multi-Colored Components

Part Number
CF228A-PSB (Reference Only)

Installation
Professional Installation Recommended

Input Voltage
110V/220V AC (Auto-Switching)

Condition
100% Brand New

Board Type
Switching Power Supply PCB

Application
Replacement/Repair of HP M403dw Power Boards

Operating Temperature
0~40C

Output Voltage
Multiple outputs for Main Board and Fuser (As per Printer Requirement)

About Hp M403dw Power Supply Board

The HP LaserJet Pro M403 power supply typically refers to internal replacement boards used to provide either low-voltage or high-voltage power to the printer's various electronic and mechanical components.

Low-Voltage Power Supply (LVPS): This board converts standard AC power from a wall outlet into the low-voltage DC power required by the printer's main logic components.
- Function: Powers the DC controller, formatter board, and fuser heating elements.
- Common Part Numbers:

  RM2-8517, RM2-9817, RM2-9816, RM3-8543.
- Input: Generally available in 110V or 220V versions depending on the region.
High-Voltage Power Supply (HVPS): This specialized board generates the high voltages necessary for the electrostatic processes used in laser printing.
- Function: Provides charge to the drum, development rollers, and transfer systems.
- Common Part Number:

  RM2-7508.
- Key Specifications & Features

Compatibility: Designed specifically for the HP LaserJet Pro M403 series (including M403d, M403n, M403dn, and M403dw) and often shared with the M402 series.
Installation: These are internal components that typically require a technician for safe installation.
Common Use Cases: Replacing a faulty unit can resolve issues such as the printer failing to turn on, unexpected shutdowns, fuser errors, or intermittent power loss.
Physical Weight: Approximately 800 grams.

OEM Quality for Hassle-Free Printing

Engineered to meet or exceed original specifications, this power supply board offers dependable performance and seamless compatibility with HP M403dw printers. Its OEM-standard size and design ensure it fits perfectly, providing stable power delivery to both the main board and fuser, which promotes printer efficiency and longevity.

Safety and Durability You Can Trust

With built-in overcurrent protection and robust components, the board guarantees safety and durability during operation. Whether used for replacement or repair, its design prevents common electrical faults and maintains silent operation, contributing to a smooth and trouble-free printing experience.

Easy Process and Quick Turnaround

Sourced direct from reputable suppliers across India as a dealer, distributor, retailer, or wholesaler, the power supply board comes with a lead time of just 1-3 working days. For best results, store it in a dry, static-free environment, and opt for professional installation to ensure proper function and maintain printer warranty.

FAQ's of Hp M403dw Power Supply Board:

Q: How do I know if the HP M403dw Power Supply Board is compatible with my printer?

A: This power supply board is specifically designed for the HP LaserJet Pro M403dw monochrome laser printer. If you have this model, the board, with its OEM-standard size and integrated connectivity, will be a direct replacement or repair solution.

Q: What are the main benefits of using this replacement power supply board?

A: The board offers stable voltage output, overcurrent protection, and OEM-quality components, ensuring safe, reliable, and silent operation. It helps restore optimal power delivery to your printer, maintaining performance and extending device lifespan.

Q: When should I consider replacing my HP M403dw power supply board?

A: Replacement is advised if your printer experiences power-related issues such as intermittent shutdowns, failure to turn on, or error messages related to power supply faults. A new board restores stable operation and printer efficiency.

Q: Where can I get the HP M403dw Power Supply Board installed?

A: Professional installation is strongly recommended for this component due to the technical nature of printer electronics. You can approach authorized service providers, trained repair technicians, or HP-certified repair centers for installation.

Q: What is the process for ordering and receiving this power supply board in India?

A: You can order through authorized dealers, distributors, or suppliers across India. Once ordered, the typical lead time is 1-3 working days for dispatch. For safe handling, store in a dry, static-free area until installation.

Q: How should I store the board before installation?

A: The board should be kept in a dry, static-free environment to prevent moisture damage and static electricity buildup, both of which could affect its function or longevity.

Q: What usage precautions should I observe with this product?

A: Handle the board carefully to avoid static discharge and physical damage. Ensure installation is carried out by professionals to prevent errors and guarantee the printer operates within OEM-specified parameters.
