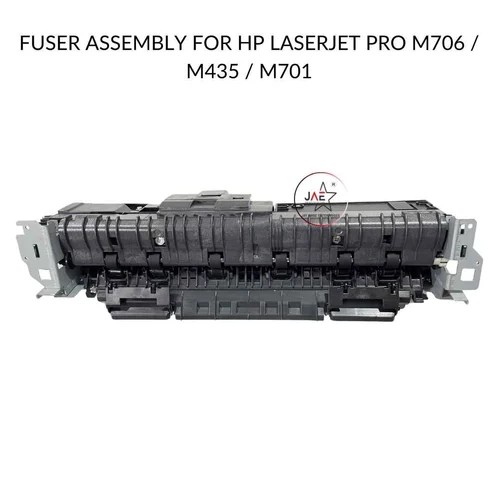

HP Laserjet Pro M706 / M435 / M701 Fuser Assembly (RM2-0639-000)

HP Laserjet Pro M706 / M435 / M701 Fuser Assembly (RM2-0639-000) Specification

Inner Diameter
Approx. 40 mm (Fuser Roller)

Size
Standard Fuser Size

Height
Approx. 145 mm

Storage Instructions
Store in a cool and dry place

For Use In
HP Laserjet Pro M706, M435, M701

Model No
RM2-0639-000

Ink Type
Toner

Color
Grey/Black

Paper Size
A4, A3

Printing Speed
Supports printers rated speed (up to 35 ppm, model dependent)

Weight
Approx. 0.92 kg

Capacity
Standard duty cycle, designed for up to 100,000 pages

Print Technology
Laser

Year Built
2023

Outer Diameter
Approx. 110 mm (Fuser Roller)

Noise Level
Low

Product Type
Fuser Assembly

Printer Type
Laserjet Printer

Compatible Brand
HP

Pattern
OEM standard

Lead Time
1-3 Days

Features
Long-lasting, precise temperature control, easy installation

Power Source
AC 220-240V, 50/60Hz

Operating Temperature Range
15 to 35C

Included Components
Fuser Unit Only

Product Condition
New, Original OEM

OEM Part Number
RM2-0639-000

Compatible Models
HP Laserjet Pro M706n, M701a, M701n, M435nw

Installation
Professional installation recommended

Heating Method
Ceramic Heater

About HP Laserjet Pro M706 / M435 / M701 Fuser Assembly (RM2-0639-000)

The HP LaserJet Fuser Assembly (RM2-0639) is a critical internal heating component designed for the HP LaserJet Pro M706, M435, and M701 series printers. It serves as the final stage of the printing process, using high-intensity heat and pressure to permanently bond toner particles onto the paper, ensuring prints are crisp and smudge-resistant.

Key Technical Specifications

Part Numbers: Primarily identified as RM2-0639 (or RM2-0639-000CN); also associated with A3E42-65013 and sometimes interchangeable with maintenance kits like RM1-8737 for broader series compatibility.
Voltage: Standard 220V operation, specifically engineered for international and high-voltage power environments to provide stable heating.
Physical Attributes: The unit weighs approximately 3 kg and has dimensions of roughly 52 x 21 x 21 cm.
Material Construction: Built with durable metal and high-temperature resistant plastics, featuring a specialized fuser film sleeve for efficient thermal conductivity.

Functionality & Performance

Precision Bonding: The assembly regulates precise temperatures to melt toner without damaging the paper, resulting in professional-grade document quality.
High-Speed Support: It is designed to match the print speeds of compatible models, such as the M706 at up to 35 ppm and the M701 at 31 ppm.
Error Prevention: Installing a new fuser unit is the primary solution for common printing issues like 50.x Fuser Errors, ghosting (faint repeating images), toner smearing, or frequent paper jams in the rear section.

Compatibility & Installation

Full Model Support:

M435 Series: M435nw.
M701 Series: M701a, M701n.
M706 Series: M706n, M706dn.

Engineered for Longevity and Precision

Featuring a long-lasting ceramic heater, this fuser assembly is built to deliver reliable performance throughout its extensive duty cycle of up to 100,000 pages. Users benefit from precise temperature control, ensuring consistently sharp prints while maintaining energy efficiency. Its robust design caters to both A4 and A3 sizes, ideal for demanding business settings that require outstanding print consistency and low operational noise.

Easy, OEM-Quality Replacement

Designed as an exact OEM match (Model No: RM2-0639-000), this fuser assembly guarantees seamless compatibility with HP Laserjet Pro M706, M435, and M701 printer series. The standard size and professional installation recommendation ensure a straightforward replacement process, resulting in minimal downtime and maximum printer performance. Each unit is shipped new and ready for immediate use.

FAQ's of HP Laserjet Pro M706 / M435 / M701 Fuser Assembly (RM2-0639-000):

Q: How do I install the HP Laserjet Pro M706 / M435 / M701 Fuser Assembly (RM2-0639-000)?

A: The installation process for this fuser assembly is straightforward for trained technicians. However, it is recommended to have the fuser installed by a professional to ensure proper fit and functionality. Incorrect installation may affect performance or damage the printer.

Q: What printers are compatible with this fuser unit?

A: The RM2-0639-000 fuser assembly is compatible with HP Laserjet Pro M706n, M701a, M701n, and M435nw printers. It's specifically designed for these models to maintain optimal print quality and reliability.

Q: When should I replace the fuser assembly in my Laserjet printer?

A: Replace the fuser assembly when you notice frequent paper jams, lower print quality, or after reaching the duty cycle of up to 100,000 pages. Always consult your printer's maintenance schedule for specific replacement intervals.

Q: Where can I purchase the original OEM RM2-0639-000 fuser assembly in India?

A: This OEM fuser unit is available through authorized HP dealers, distributors, wholesalers, and specialist suppliers across India. Purchasing from authorized sources ensures product authenticity and warranty support.

Q: What are the main benefits of using an original HP fuser assembly?

A: Using the original OEM fuser ensures maximum compatibility, longevity, and print quality. It provides precise temperature control for consistent performance and reduces the risk of printer damage compared to non-genuine alternatives.

Q: How should I store the fuser assembly before installation?

A: Keep the fuser unit in a cool and dry place to maintain its condition before use. Proper storage prevents moisture and temperature extremes from affecting the fuser's performance.
