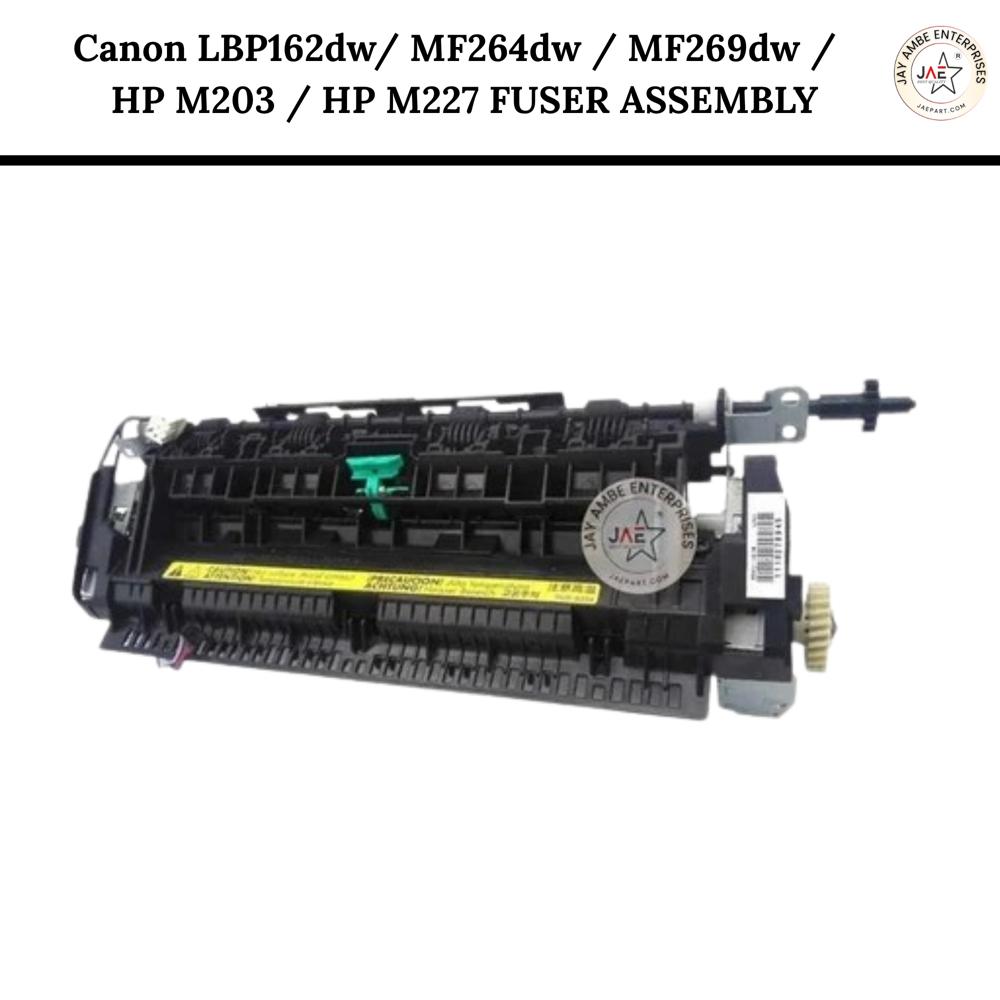

LBP162dw/ MF264dw / MF269dw / M203 / M227 Fuser Assembly

LBP162dw/ MF264dw / MF269dw / M203 / M227 Fuser Assembly Specification

Paper Size
A4, Letter

Storage Instructions
Store in cool and dry place

Product Type
Fuser Assembly

Printer Type
Laser Printer

Year Built
2023

Pattern
OEM Specification

Weight
750 g

For Use In
Canon LBP162dw, MF264dw, MF269dw, M203, M227

Height
Approx. 90 mm

Compatible Brand
Canon

Model No
LBP162dw/MF264dw/MF269dw/M203/M227

Outer Diameter
Approx. 80 mm

Printing Speed
Up to 28 ppm

Features
Long life, Precise temperature control, Reliable performance, Easy installation

Power Source
AC Power

Color
Black & Metallic

Print Technology
Laser

Inner Diameter
Approx. 65 mm

Size
Standard OEM Fitment

Capacity
Standard Duty Cycle

Lead Time
3-5 Working Days

Noise Level
Low

Packaging Type
Box Packed

Service Life
Up to 100,000 Pages

Surface Finish
Smooth/Matte

Part Number
FM3-9293-000

Material
High-Temperature Polymer & Metal

Minimum Operating Temperature
50C

Maximum Operating Temperature
185C

About LBP162dw/ MF264dw / MF269dw / M203 / M227 Fuser Assembly

The Fuser Assembly (Fixing Unit) for the Canon imageCLASS LBP162dw, MF264dw, MF269dw and HP LaserJet Pro M203, M227 series (Part Number: RC4-8034 / RM2-0836-000) is the critical component responsible for permanently bonding toner to paper using a combination of intense heat and pressure.

Product Overview

This assembly is a complete maintenance unit designed to restore OEM-level print quality and prevent issues like smudging, paper jams, or "fuser error" codes. It is universally compatible across several Canon and HP laser printer models due to shared engine designs.

Technical Specifications

Part Numbers: RC4-8034, RC4-8034-000, RM2-0836-000 (220V), RM2-0835-000 (110V).
Voltage: Available in 220V (standard for India/Europe) and 110V (standard for North America).
Expected Life/Yield: Approximately 80,000 pages, depending on usage conditions.
Weight: Roughly 1.5 kg to 2.7 kg (approx. 6 lbs).
Construction: High-temperature resistant plastic body housing precision metal and rubber rollers.

Core Components & Function

Heating Element (Fixing Film/Teflon Sleeve): A thin, heat-conductive sleeve that reaches high temperatures rapidly to melt the dry toner particles.
Pressure Roller (Lower Roller): A durable rubber roller that presses the paper firmly against the heating element to ensure the toner is pressed into the paper fibers.
Fuser Gears & Drive: Precision gears that synchronize the movement of the rollers with the printers paper path to prevent jams.
Thermistor & Thermostat: Integrated sensors that monitor and regulate the temperature to prevent overheating or "cold fusing" (where toner rubs off).

Compatibility

This unit is widely compatible with the following series:

Canon imageCLASS: LBP160, LBP161dn, LBP162dw,MF261d, MF264dw, MF266dn, MF267dw, MF269dw

HP LaserJet Pro/Ultra: M203(dn/dw), M227(fdn/fdw/sdn), M206, M230.

Precision-Engineered Fuser Assembly

Crafted for Canon LBP162dw, MF264dw, MF269dw, M203, and M227 laser printers, this OEM-specification fuser assembly delivers optimum performance and seamless compatibility. Its high-temperature polymer and metal construction ensure long-term reliability and a service life of up to 100,000 pages, making it perfect for high-volume printing environments. Enjoy consistent, sharp prints and smooth operation with this durable component.

Efficient Temperature Control for Consistent Results

With a calibrated operating range from 50C to 185C, this fuser assembly sustains precise heat control, ensuring every print is fused perfectly. The smooth/matte surface finish minimizes paper jams and upholds the integrity of printed documents, suitable for a variety of settings from offices to professional print shops.

Easy Installation and Standard OEM Fitment

Designed to match original equipment manufacturer specifications, installation of the FM3-9293-000 fuser assembly is straightforward, reducing printer downtime. Its standard OEM fitment and box-packed packaging protect the unit during shipping and storage, supporting quick service and replacement when required.

FAQ's of LBP162dw/ MF264dw / MF269dw / M203 / M227 Fuser Assembly:

Q: How do I install the FM3-9293-000 fuser assembly in my Canon printer?

A: The FM3-9293-000 fuser assembly is made for easy installation with standard OEM fitment. To install, turn off and unplug your Canon LBP162dw, MF264dw, MF269dw, M203, or M227 printer, allow the old fuser to cool, remove it, and insert the new fuser as per manufacturer instructions. Detailed installation is outlined in your printer's service manual.

Q: What printers are compatible with this fuser assembly model?

A: This fuser assembly is compatible with Canon LBP162dw, MF264dw, MF269dw, M203, and M227 laser printers. Ensure your printer model matches before purchasing to guarantee proper fitment and performance.

Q: What are the benefits of using a high-temperature polymer & metal fuser assembly?

A: The combination of high-temperature polymer and metal ensures durable construction, excellent heat resistance, and reliable performance. This translates to long service life (up to 100,000 pages), consistent print quality, and trouble-free operation with low noise and accurate temperature control.

Q: When should I replace the fuser assembly in my printer?

A: Replacement is typically required after the service life of up to 100,000 pages, or if you experience print quality issues such as smudging, ghosting, or frequent paper jams. Regular maintenance checks can help determine the right time for replacement.

Q: How should the fuser assembly be stored before installation?

A: Store the unused fuser assembly in its original box packaging, in a cool and dry place. Proper storage helps preserve the unit's condition and ensures reliable operation when installed.

Q: What are the main features of the FM3-9293-000 fuser assembly?

A: Key features include long life (up to 100,000 pages), reliable performance, easy installation, precise temperature control (50C-185C), low noise, standard duty cycle, and compliance with OEM specifications. It is designed to meet the demands of various business and professional environments.
