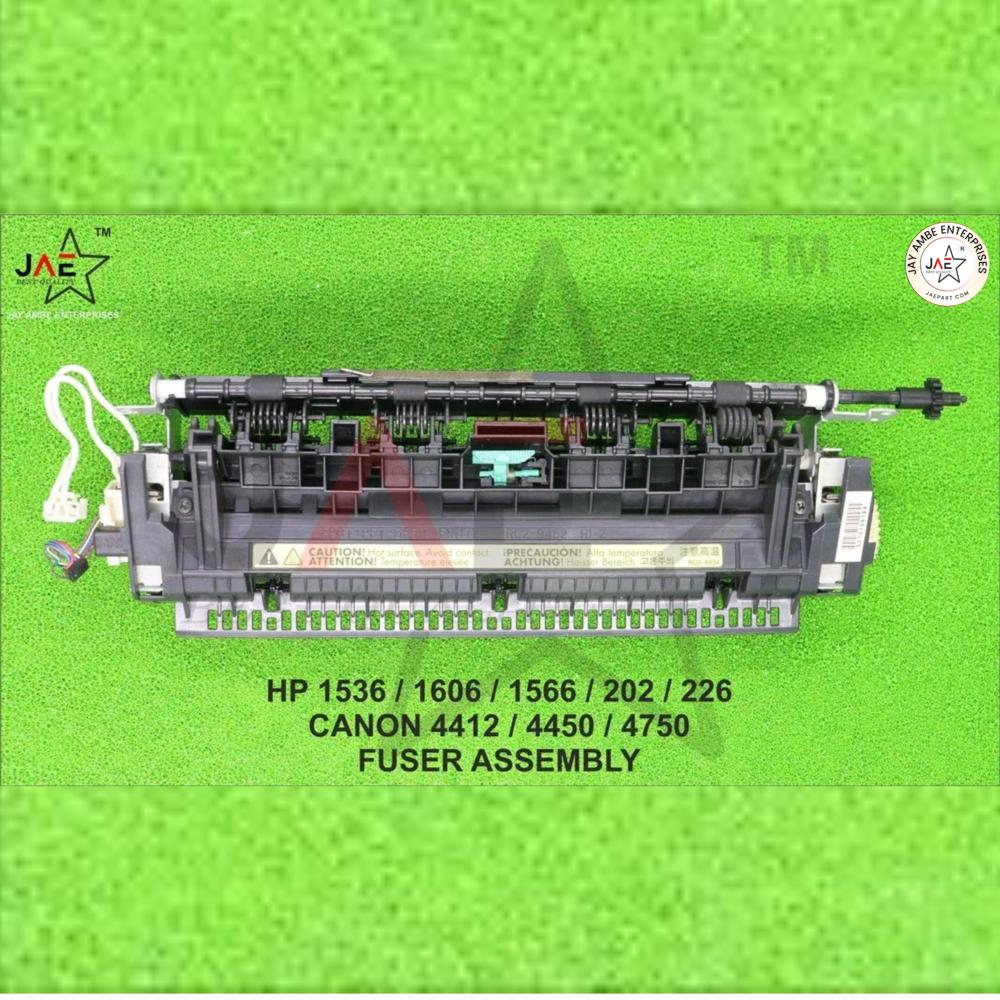

HP LaserJet 1606dn M202DW M1536 M226 P1566 Fuser Unit Assembly

About HP LaserJet 1606dn M202DW M1536 M226 P1566 Fuser Unit Assembly

The HP LaserJet Pro P1606dn Fuser Unit (often referred to by part numbers RM1-7577, RM1-7576, or RM1-7546) is the critical internal component responsible for permanently bonding toner powder to the paper through a combination of intense heat and pressure.

Core Functionality

Bonding Process: As paper passes through the unit, the fuser heating element reaches high temperatures to melt the toner, while a pressure roller firmly presses the liquefied toner into the paper fibers.
Print Quality: It is essential for producing sharp, professional-grade documents. A failing fuser unit often causes symptoms such as smeared text, incomplete fusing (toner rubbing off), or frequent paper jams in the rear section of the printer.

Technical Specifications

Compatibility: This assembly is widely compatible with several HP and Canon models, including:
- HP LaserJet Pro: P1606dn, P1566, M1536dnf, M201, M202, M225, and M226.
- Canon ImageCLASS: MF4410, MF4450, MF4570, MF4820, and LBP6200.
Voltage: Standard models are typically rated for 220V for use in India/Asia and Europe, or 110V for North America.
Weight: The unit generally weighs between 700g and 1.5kg depending on the specific assembly and packaging.
Duty Cycle: Engineered for high-volume enterprise and office duty cycles to maintain printer uptime.

Key Components within the Unit

Fuser Film Sleeve: A high-durability, heat-resistant sleeve (often "Red Bamboo" quality in aftermarket parts) that distributes heat evenly.
Pressure Roller: A silicone-coated roller that provides the necessary force to bond toner to the page.
Heating Element: A ceramic or lamp-based heater that provides rapid warm-up times.
Fuser Drive Gears: Precision gears (e.g., 23T/56T) that synchronize the unit's rotation with the printer's paper feed system.
Delivery Guide: Ensures smooth paper exit to prevent "accordion" jams.
