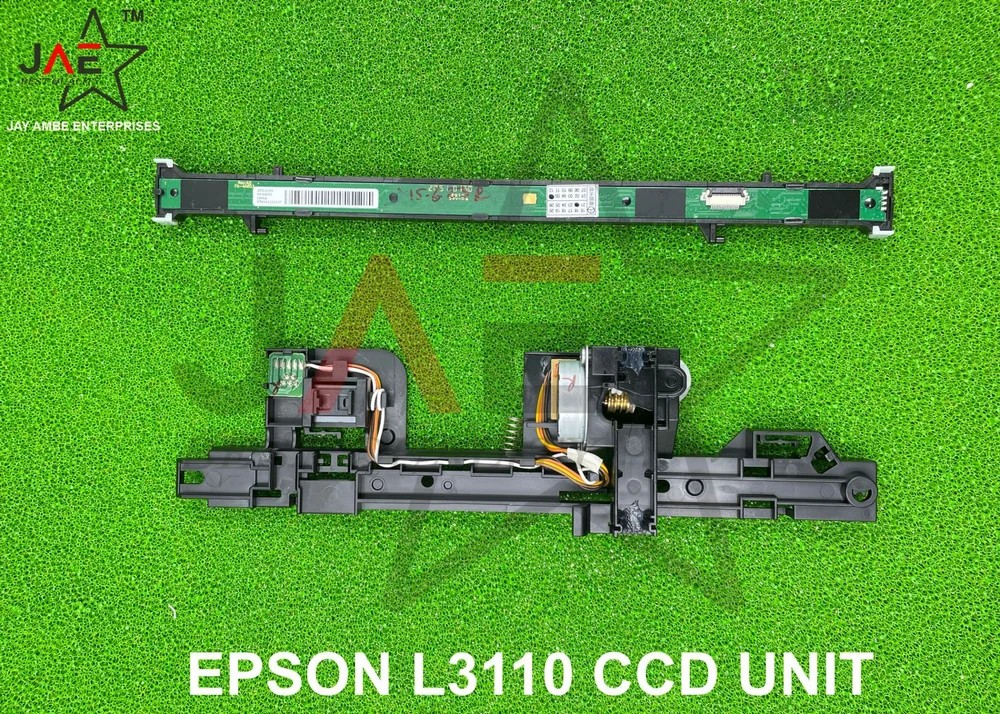

EPSON L3110 / L3115 Printer CCD SCANNER

EPSON L3110 / L3115 Printer CCD SCANNER Specification

Print Technology
N/A (Scanner component only)

Paper Size
A4/letter

Accessory Name
Epson L3110/L3115 CCD Scanner

Usage & Applications
Replacement CCD scanner for Epson L3110/L3115 printers

Dimension (L*W*H)
Approx. 315 x 45 x 30 mm

Features
High-resolution color scanning, easy installation, compatible with original Epson hardware

Install Type
Internal replacement component

Scan Speed
Approx. 11 seconds per A4 (300dpi, color)

Noise Level
<40 dB

Connectivity Type
N/A (connects internally in printer)

Function Type
Scanner

Scanning Resolution
600 x 1200 dpi

Production Output
High-quality scanning up to 600dpi

Power Consumption
Powered through printer

Type
Original scanner unit

Interface Type
Flatbed

Color Depth
48-bit input, 24-bit output

Scan Type
CIS (Contact Image Sensor)

Print Speed
N/A (Scanner component only)

Max Paper Size
A4

Size
Compatible with L3110/L3115 model dimensions

Weight
Approx. 220 g

OEM Part Number
CIS Scanner Assy for L3110/L3115

Package Content
1 x CCD Scanner Unit

Relative Humidity
10% - 80% (no condensation)

Compatible Models
EPSON Ecotank L3110, L3115 series

Operating Temperature
5C to 35C

Material
ABS, Electronic Components

Installation
Professional installation recommended

About EPSON L3110 / L3115 Printer CCD SCANNER

The CCD/CIS Scanner Unit for the Epson EcoTank L3110 is a critical, high-precision replacement module designed to restore scanning and copying functionality. It acts as the core sensor, capturing document data and converting light into electrical signals to create digital images.

Here is a detailed, long description of the L3110 CCD/CIS Unit:

1. Product Function and Description

Purpose: This component replaces a faulty scanner assembly, addressing issues such as distorted images, blurry scans, white pages, scanner error messages, or a non-functioning scanner carriage.
Scanner Type: Although often referred to as a "CCD" (Charge-Coupled Device) unit in aftermarket listings, it is technically a CIS (Contact Image Sensor) head scanner.
Component Assembly: The unit typically includes the CIS sensor head, the motor (often a 5-pin configuration), and the scanner gear assembly, allowing for a complete repair of the scanning mechanism.

2. Technical Specifications

Compatibility: Designed specifically for the Epson EcoTank L3110. It is often cross-compatible with L-series models including L3100, L3115, L3116, L3150, L3210, L3250, and M2120.
Part Numbers: Known to correspond with Epson part numbers 2188205 or 2193086.
Resolution & Performance: Engineered to meet or exceed original OEM standards (generally supporting 600 x 1200 dpi), ensuring clear, crisp, and color-accurate scans.
Scanner Cable: Uses a 17-pin flat flexible cable (FFC) to transfer data between the unit and the motherboard.

3. Key Features and Benefits

Cost-Effective Repair: Allows users to fix scanner issues without replacing the entire printer, saving significant costs.
High-Quality Imaging: Restores full-color resolution and scan sharpness, ideal for high-volume copying environments.
Durable Build: Manufactured with high-quality components to ensure smooth movement and long-term durability.
Pre-Tested: Many third-party sellers offer refurbished, tested, or new "original-compatible" modules that are ready to install.

4. Compatibility Details

Epson EcoTank: L3100, L3101, L3110, L3115, L3116, L3150, L3152, L3156, L3210, L3250, L4150, L6160.
Epson M-Series: M2120, M2140.

Designed for Epson L3110 & L3115 Series

This OEM CCD scanner unit perfectly matches the internal dimensions of Epson Ecotank L3110 and L3115 printers. Its precision engineering ensures compatibility, seamless integration, and reliable scanning, making it the ideal choice for professional and home use where original quality is paramount.

Exceptional Scanning Performance

Experience stunning color reproduction and sharp detail with high-resolution scanning up to 600 x 1200 dpi. The unit captures true-to-life images with a 48-bit input color depth and delivers quick scans-approx. 11 seconds per A4 page at 300 dpi (color). It's perfect for document archiving and creative scanning projects.

Durable and Reliable Construction

Built using robust ABS material combined with advanced electronic components, this scanner is engineered to operate effectively in environments between 5C and 35C, and 10%-80% relative humidity. It's crafted to last, delivering consistent scanning results for years under normal operating conditions.

FAQ's of EPSON L3110 / L3115 Printer CCD SCANNER:

Q: How do I know if this CCD scanner unit is compatible with my Epson printer?

A: This scanner unit is specifically designed for the Epson L3110 and L3115 Ecotank printer series. Before purchase, ensure your model matches either L3110 or L3115 for perfect compatibility.

Q: What is the recommended process for installing the CCD scanner unit?

A: Professional installation is strongly recommended. It involves internal replacement within the printer, which ensures the scanner is properly aligned and integrated for optimal performance.

Q: What are the main benefits of replacing my scanner unit with this OEM part?

A: Replacing your scanner with this original OEM unit restores high-resolution color scanning (up to 600 x 1200 dpi), ensures seamless compatibility, and maintains the reliability and quality expected from Epson hardware.

Q: When should I consider replacing the CCD scanner in my printer?

A: You should replace the CCD scanner if you notice poor scan quality, hardware errors specific to scanning, or physical damage to the scanning component in your L3110 or L3115 printer.

Q: Where can I use this scanner unit, and is it suitable for all environments?

A: The scanner is intended for use in environments with temperatures between 5C and 35C and humidity levels of 10-80% (non-condensing). It is suitable for home, office, and professional settings within these parameters.

Q: How does this scanner unit enhance my scanning process?

A: This OEM unit provides high-quality, fast, and reliable scanning with color depth up to 48-bit (input) and speeds of approximately 11 seconds per A4 (300 dpi, color), ensuring efficient document handling and vivid digital reproduction.

Q: What is included in the package, and does it require additional hardware to function?

A: The package contains 1 x CCD scanner unit. No additional hardware is needed as this part is internally installed and powered through your Epson printer itself.
