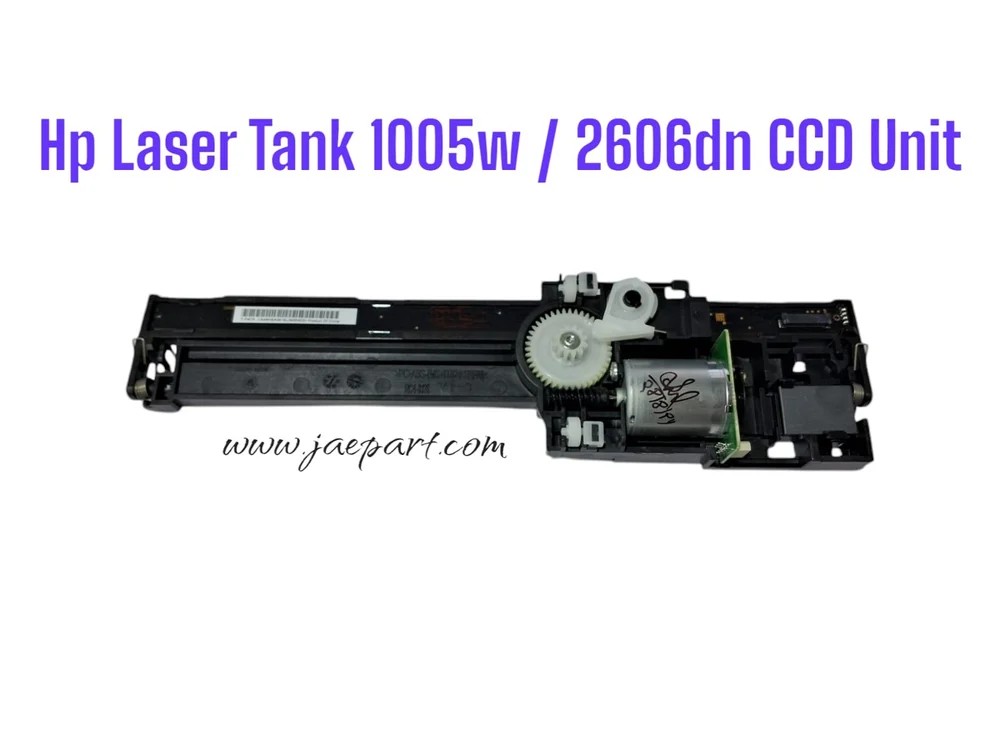

HP LASERJET TANK 1005W / HP2606DN CCD SCANNER CCD UNIT

HP LASERJET TANK 1005W / HP2606DN CCD SCANNER CCD UNIT Specification

Power Consumption
Low

Paper Size
A4

Noise Level
Low

Dimension (L*W*H)
230 mm x 42 mm x 30 mm

Function Type
Scanner (spare part)

Install Type
Internal installation in printer

Connectivity Type
Internal scanner interface

Accessory Name
CCD Scanner Unit

Usage & Applications
Scanner unit replacement for HP LaserJet Tank 1005W / HP2606DN

Features
High durability, OEM fitment, Easy replacement

Scanning Resolution
600 x 600 dpi

Scan Speed
Approx. 10 sec/page

Print Technology
CCD (Charge Coupled Device)

Type
Original CCD Scanner Unit

Interface Type
Standard CCD flatbed connection

Color Depth
24-bit

Scan Type
CCD Flatbed

Max Paper Size
A4

Size
Standard for compatible HP models

Weight
Approx. 220 g

Operating Temperature Range
10C - 35C

Replacement Category
Service/Repair spare part

OEM/Aftermarket
OEM

Relative Humidity
15% - 80% (operating)

Packaging
Antistatic sealed bag

Storage Temperature Range
-20C - 60C

Image Sensor Type
CCD (Charge Coupled Device)

Part Compatibility
HP LaserJet Tank 1005W, HP2606DN printers

About HP LASERJET TANK 1005W / HP2606DN CCD SCANNER CCD UNIT

The CCD Scanner Unit (also referred to as the CIS Head Assembly) for the HP LaserJet Tank 1005w and 2606dn is a critical internal component responsible for capturing high-resolution digital images during scanning and copying.

Technical Specifications & Identification

Part Numbers: Commonly identified by OEM part numbers CM218-CFADW-1, G3Q59-60107, or 4QK87-40031.
Component Type: A complete scanner unit assembly often including the CCD sensor array and movement mechanism.
Construction: Features a durable plastic housing with precision-engineered internal gears and mechanical components for reliable movement.
Weight & Dimensions: Typically weighs approximately 100g to 200g with standard packaging sizes around 10x12 cm.

Key Features & Performance

Precision Scanning: Uses Charge-Coupled Device (CCD) or Contact Image Sensor (CIS) technology to deliver sharp, accurate results for documents and ID cards.
Direct Replacement: Designed as a "plug-and-play" direct replacement for the original upper scanner module, ensuring a perfect fit without modification.
Full Assembly: Often sold as a "Complete CCD Scanner with Motor," which includes the necessary drive system for the scanner head's travel across the flatbed.

Compatibility

This unit is specifically engineered for the HP LaserJet Tank series, including:

MFP 1005 / 1005w
MFP 2606dn / 2606sdw
Related Models: Also compatible with some HP LaserJet MFP M233 series printers.

High-Precision Scanning for HP LaserJet Printers

Featuring state-of-the-art CCD technology, this scanner unit offers 24-bit color depth and a scanning resolution of 600 x 600 dpi. Designed for use with the HP LaserJet Tank 1005W and HP2606DN models, it ensures optimal performance for A4-sized documents. High durability and low noise levels make it a reliable choice for professional environments.

Easy and Secure Installation

The scanner unit comes packaged in an antistatic sealed bag to prevent damage during transit. Its design allows for a straightforward internal installation, making service or repair quick and efficient. With OEM fitment, users are assured a perfect match for their HP printer models, and the low power requirement helps maintain energy efficiency.

Versatile Applications and Long-Lasting Performance

Suitable for dealers, distributors, and service professionals, this CCD scanner unit meets the demands of intensive daily use. Wide operating and storage temperature ranges (10C to 35C and -20C to 60C, respectively), as well as relative humidity tolerance, guarantee dependable performance in various work environments across India.

FAQ's of HP LASERJET TANK 1005W / HP2606DN CCD SCANNER CCD UNIT:

Q: How do I install the HP CCD Scanner Unit in my LaserJet Tank 1005W or HP2606DN printer?

A: Installation is straightforward: the scanner unit is designed for internal placement within compatible HP LaserJet Tank 1005W and HP2606DN printers. Follow your printer's service manual and safety precautions, ensuring the printer is powered off before replacing the unit. If unsure, professional servicing is recommended.

Q: What benefits does the CCD technology offer in this scanner unit?

A: CCD (Charge Coupled Device) technology delivers high-fidelity image capture, supporting 24-bit color depth and 600 x 600 dpi resolution. This ensures crisp, accurate scans and reliable performance, especially when compared to standard CIS-based alternatives.

Q: When should I consider replacing my printer's scanner unit?

A: Replacement is advised if your LaserJet Tank 1005W or HP2606DN shows consistent scanning errors, poor image quality, or mechanical scanning issues that are not resolved by basic troubleshooting. Scheduled servicing can also recommend scanner unit replacement for sustained optimal performance.

Q: What documents can I scan with this CCD scanner unit?

A: This unit is built for flatbed scanning of A4-sized documents, making it suitable for a wide range of materials including text, graphics, and color images. Ideal for daily office or service center environments.

Q: Where can I purchase the original HP CCD Scanner Unit in India?

A: The scanner unit is available through authorized HP dealers, distributors, and suppliers across India. It can also be sourced from reputable exporters, importers, and service/repair professionals.

Q: What precautions should I take while handling and storing the scanner unit?

A: Always handle the CCD scanner unit using proper electrostatic discharge precautions and keep it in its antistatic sealed packaging until installation. Store it at temperatures between -20C and 60C with 15%-80% humidity to prevent any damage.

Q: Is this scanner unit covered under HP's OEM warranty and is it an aftermarket part?

A: This is an original OEM scanner unit, guaranteeing fitment and compatibility with supported HP models. Please check with your dealer or distributor regarding specific warranty terms at the time of purchase.
