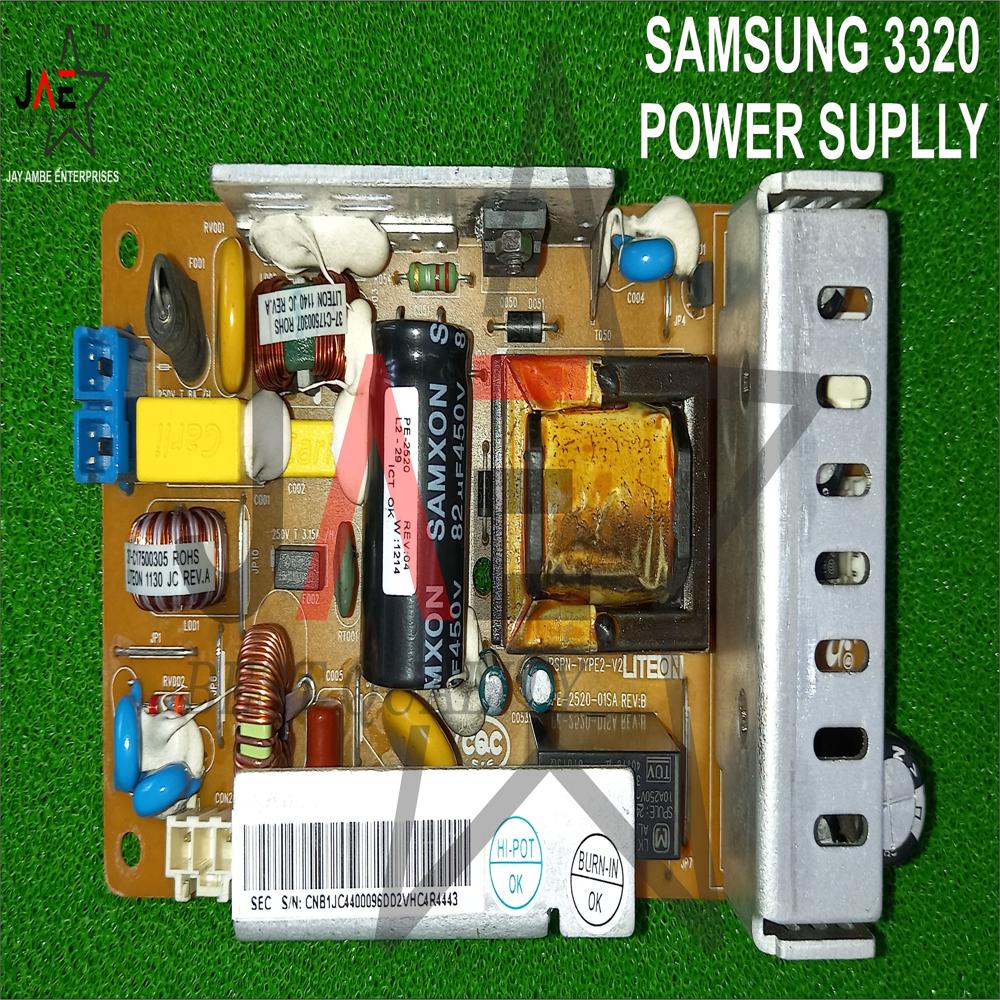

Samsung ML3320ND ML3310ND Printer Power Supply Board (JC44-00095D) (JC44-00095D)

About Samsung ML3320ND ML3310ND Printer Power Supply Board (JC44-00095D) (JC44-00095D)

The Samsung ML 3320 series (commonly including the ProXpress SL-M3320ND) uses two primary power supply units: a Low Voltage Power Supply (LVPS) for internal logic and a High Voltage Power Supply (HVPS) for the printing process.

High Voltage Power Supply (HVPS)

The HVPS is responsible for generating the high-voltage charges required for the developer, toner transfer, and charging rollers.

Part Number: Commonly identified as

JC44-00197A.
Function: Delivers stable, high-voltage output essential for large-volume printing.
Compatibility: Designed for use in
Samsung Xpress SL-M3320ND, SL-M3370FD, and SL-M3870FD.
Features: Includes advanced energy regulation and reliable voltage output to reduce downtime in high-demand commercial environments.

Low Voltage Power Supply (LVPS) / SMPS Board The LVPS, often referred to as the SMPS Board or DC Card, converts AC input into regulated DC output for the printers logic circuits and motors.

Part Numbers: Typically
JC44-00095D or JC44-00096D.
Electrical Specs: Generally supports AC Input (often noted as 240V for specific regions).
Physical: Weighs approximately 800g and features a compact design with OEM-compatible connector layouts.
Compatibility: Shared across Samsung ProXpress SL-M3310ND and SL-M3320ND models.
