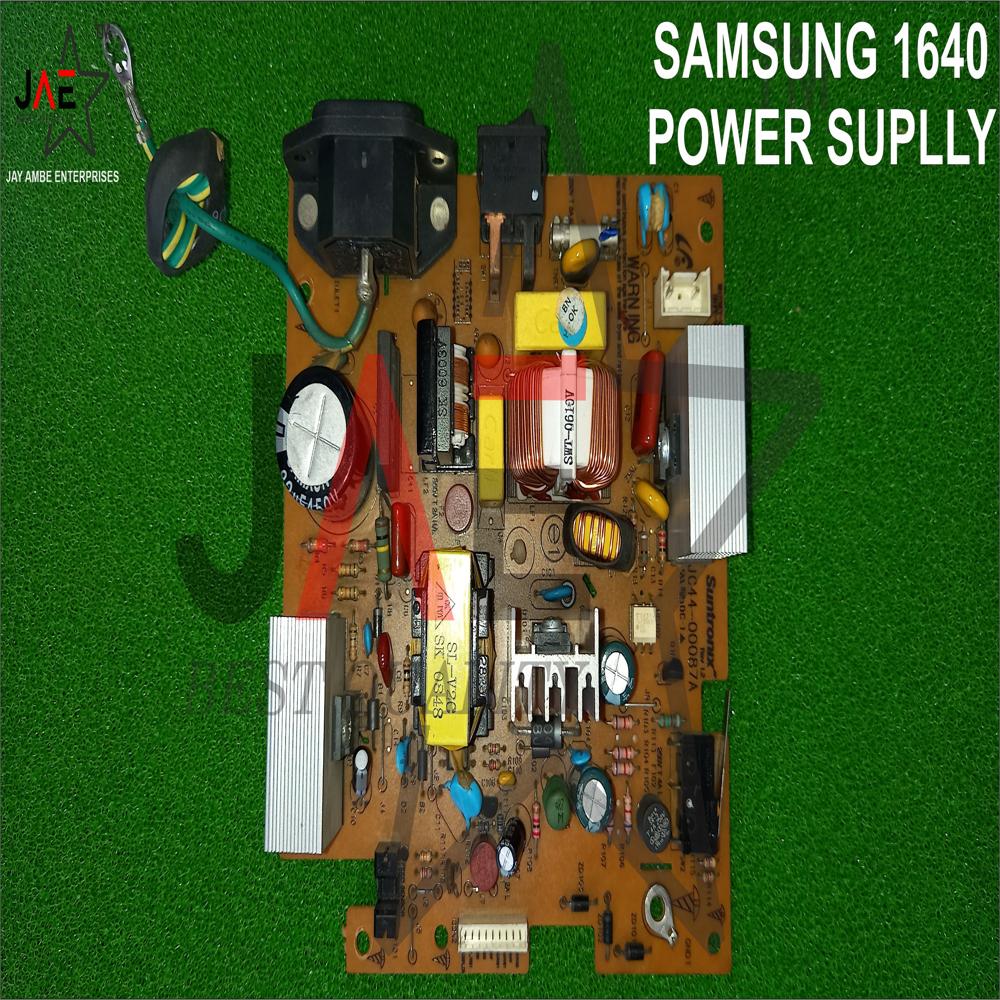

SAMSUNG ML1640 Printer Power Supply Board (JC44-00110A)

SAMSUNG ML1640 Printer Power Supply Board (JC44-00110A) Specification

Printing Speed
Depends on Printer Specs

Size
Standard OEM Size

Capacity
Standard Board Capacity

Lead Time
Ready Stock

Connectivity Type
Board Level (Internal)

Product Type
Power Supply Board

Features
OEM Quality, High Durability, Reliable Performance

For Use In
Samsung ML1640 Printer

Compatible Brand
Samsung

Pattern
PCB Board

Color
Green

Power Source
AC Input (From Printer)

Noise Level
Silent Operation

Model No
JC44-00110A

Printer Type
Laser Printer

Weight
Approx. 150g

Storage Instructions
Store in a dry, cool place

Print Technology
Laser

RoHS Compliance
Yes

Input Voltage
220V AC (Typical)

Part Number Alias
JC44-00110A, ML-1640PSB

Mounting Type
Internal Screw/Slot Mount

Output Voltage
24V/5V DC (Typical, for Printer Components)

Board Material
FR4 High Grade PCB

Condition
Brand New, Original Replacement

Protection
Overload and Short Circuit Protection

Compatibility
Samsung ML1640, ML-2240, and related models

About SAMSUNG ML1640 Printer Power Supply Board (JC44-00110A)

The power supply for the Samsung ML-1640 laser printer typically refers to the Low Voltage Power Supply (LVPS) board, often combined with high-voltage components on a single power board. It is a critical internal component that converts AC input into the DC voltages required to power the printer's logic board, motors, and fuser unit.

Technical Specifications

Part Numbers: Commonly identified by part numbers
JC44-00110A

JC44-00109A

JC44-00112A.
Input Voltage: Designed for 220240 V AC at 50Hz frequency. Some regional variants may exist for 110 V.
Output Power: Rated at approximately 200 W.
Output Voltage: Provides a stable 24 V DC output for mechanical and electronic operation.
Weight & Dimensions: The board weighs roughly 600800 g and measures approximately 29 23 6 cm.

Key Features & Functionality

Integrated Design: Often functions as a Switching Mode Power Supply (SMPS) board, which is more efficient and compact than traditional linear power supplies.
High Voltage Integration: Certain versions like ( JC44-00168A or JC44-00167A) also house the High Voltage Power Supply (HVPS) components necessary for the electrophotographic process, such as charging the drum and transferring toner.
Multi-Model Compatibility: This board is frequently cross-compatible with other Samsung and Xerox models, including the Samsung ML-1610, ML-2010,

SCX-4521F, and the Xerox Phaser 3117.

Reliable Original Replacement for Samsung Laser Printers

This power supply board is tailored for Samsung laser printers such as ML1640 and ML2240. As a genuine OEM replacement, it ensures compatibility, durable performance, and seamless integration inside your machine. Its board-level connectivity and FR4 high-grade PCB guarantee longevity and stable operation for demanding office environments.

Robust Safety and Compliance Features

Equipped with overload and short circuit protection, the JC44-00110A safeguards your printer from electrical mishaps. The board is RoHS compliant, prioritizing environmental safety while still providing reliable functionality. Its silent operation and standard OEM size make it an ideal fit for your printer's internal architecture.

FAQ's of SAMSUNG ML1640 Printer Power Supply Board (JC44-00110A):

Q: How do I install the SAMSUNG ML1640 Printer Power Supply Board (JC44-00110A)?

A: Installation requires opening the printer's chassis, locating the existing power supply board, and securely mounting the replacement board using the internal screw or slot mounts. Always disconnect power before starting and consult the printer's service manual for guidance.

Q: What Samsung printer models are compatible with this power supply board?

A: The JC44-00110A board is compatible with Samsung ML1640, ML-2240, and some related models. For complete compatibility, refer to your printer's technical documentation or contact your supplier.

Q: When should I replace the power supply board in my Samsung printer?

A: Consider replacing the power supply board if your printer experiences power failures, frequent shutdowns, or is unresponsive despite a functional power source. Using an original replacement restores reliability and performance.

Q: Where can I purchase the original JC44-00110A power board in India?

A: You can obtain this OEM power supply board from authorized dealers, distributors, exporters, fabricators, manufacturers, and online retailers across India. Check with official Samsung parts suppliers for availability.

Q: What is the benefit of using an original Samsung power supply board over third-party alternatives?

A: Original boards ensure full compatibility, reliable power delivery, compliance with safety standards, and protection features such as overload and short circuit safeguards-reducing the risk of printer damage.
