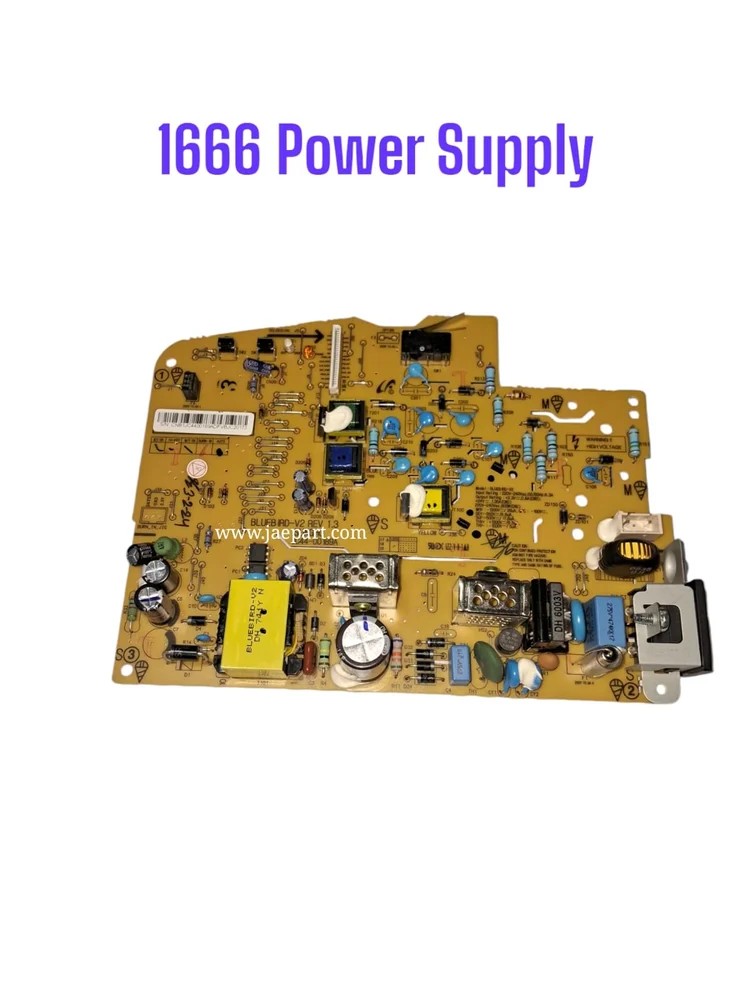

Samsung ML-1666, ML-1676, ML-1866 Printer Power Supply Board (JC44-00189A / JC4400189A)

Samsung ML-1666, ML-1676, ML-1866 Printer Power Supply Board (JC44-00189A / JC4400189A) Specification

Product Type
Power Supply Board

Lead Time
1-2 business days

Height
Approx. 2.5 cm

Model No
JC44-00189A / JC4400189A

Color
Green (PCB)

Power Source
AC Power (110V-240V, 50/60Hz)

Year Built
Compatible with models released from 2010 onwards

Pattern
Standard PCB layout

For Use In
Samsung ML-1666, ML-1676, ML-1866 Printers

Size
Approx. 14 x 8.5 cm

Print Technology
Laser

Storage Instructions
Store in a dry, dust-free environment

Features
Original high-quality replacement, stable performance, easy to install

Printer Type
Laser Printer

Weight
Approx. 80 grams

Compatible Brand
Samsung

Capacity
Standard

Input Voltage Range
110-240V AC

Fuse Rating
Included (factory set)

Part Number (Short)
JC44-00189A

Operating Temperature
0C-40C

Mounting
Direct fit replacement, original screw holes alignment

Condition
Brand New

PCB Material
FR-4 glass epoxy

OEM/Replacement
Replacement (OEM Equivalent)

Compatible Devices
Mono Laser Printers

Output Voltage
Matches printer specification (typically 24V DC, 5V DC-check device compatibility)

About Samsung ML-1666, ML-1676, ML-1866 Printer Power Supply Board (JC44-00189A / JC4400189A)

The

Samsung ML-1666 Power Supply Board

(also known as the DC Board or Power Card) is a critical internal component designed to provide stable electrical power to Samsung's compact laser printer series. It converts input AC voltage into the various DC voltages required by the printer's engine, laser scanner, and logic boards.

Key Specifications & Features

Part Numbers: Commonly identified as JC44-00189A or JC4400189A.
Input Voltage: Typically supports 240V AC (Indian/Standard models).
Weight: Approximately 1000g (packaged).
Functionality: Ensures consistent power delivery to prevent interruptions and maintain print quality.
Classification: Often categorized under HSN Code 8443 (Printing Machinery).

Compatibility

This power board is highly versatile and compatible with several models within the same Samsung printer family:

ML Series: ML-1660, ML-1666, ML-1670, ML-1675, ML-1676
Extended Series: ML-1860, ML-1866, ML-1866W

Reliable Replacement Power Board for Seamless Printing

Experience hassle-free performance and enhanced reliability with the JC44-00189A, purpose-built for Samsung ML-1666, ML-1676, and ML-1866 mono laser printers. Manufactured from robust FR-4 glass epoxy, it is constructed to withstand daily use, offering steady power output and long-term functionality. Installation is simple with its direct-fit design and factory-aligned screw holes, making it a perfect choice for both end-users and technicians.

OEM-Equivalent Quality and Compatibility

This replacement power supply board not only matches OEM specifications but also exceeds standard requirements for precision and safety. It includes a factory-set fuse, is compatible with original cabling, and maintains all safety and performance features expected in Samsung laser printer components. With support for printer models from 2010 onwards, it ensures a worry-free replacement experience.

FAQ's of Samsung ML-1666, ML-1676, ML-1866 Printer Power Supply Board (JC44-00189A / JC4400189A):

Q: How do I install the JC44-00189A power supply board in my Samsung printer?

A: Installation involves removing your printer's cover, disconnecting the old power supply board, and attaching the new JC44-00189A using the aligned screw holes for a direct fit. Carefully reconnect all cables and test for proper operation before fully closing the printer.

Q: What are the key benefits of using this replacement power supply board?

A: This replacement board offers stable performance, ensures reliable printer operations, and is easy to install due to its direct fit design and compatible screw alignment. Its OEM-equivalent quality provides durability while maintaining your printer's efficiency.

Q: When should I consider replacing the power supply board in my Samsung ML series printer?

A: You should consider replacing the power board if your printer experiences power issues, fails to turn on, or displays inconsistent performance possibly caused by faulty power supply. Always confirm compatibility before replacement.

Q: Where should I store the power supply board before installation?

A: Store the JC44-00189A board in a dry, dust-free environment to prevent moisture or debris from affecting its components. Avoid areas with extreme temperatures or humidity for optimum longevity.

Q: What process should I follow to ensure device compatibility before purchasing this board?

A: Check your printer model (ML-1666, ML-1676, or ML-1866) and verify the part number (JC44-00189A) against your printer's service manual. Ensure your device operates within the input/output voltage requirements for safe installation.

Q: Is the included fuse adequate, or do I need to set it up separately?

A: The JC44-00189A board comes with a factory-set fuse appropriate for standard operation. There is no need for manual adjustment-just ensure the board is installed correctly for proper fuse functionality.
