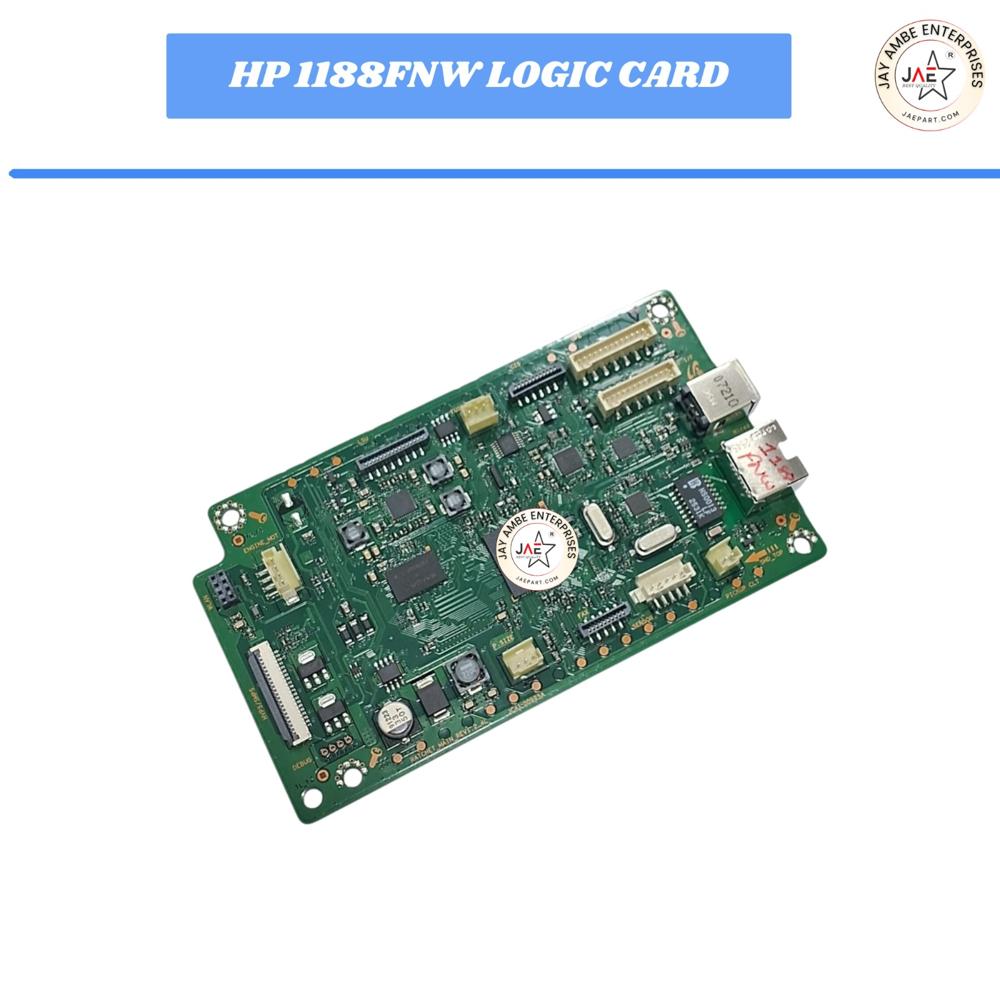

HP 1188 FNW LOGIC CARD

HP 1188 FNW LOGIC CARD Specification

Power Source
Printer Powered

Capacity
Standard

Pattern
Standard PCB layout

Year Built
2023

Print Technology
Laser

For Use In
printer

Product Type
logic card

Features
High Precision Circuit, Durable PCB

Model No
1188 FNW

Storage Instructions
Store in dry place

Printer Type
Laser Printer

Compatible Brand
HP

Weight
45 g

Height
12 mm

Size
Standard

Lead Time
1-3 Days

Color
green

Connectivity Type
Wired, Network

Printing Speed
Depends on printer model

Operating Temperature
0C - 40C

Installation
Professional Installation Recommended

Number of Connectors
5

Package Contents
1 x Logic Card

Voltage
24V DC

OEM/Aftermarket
Aftermarket Replacement

Compatible Models
HP LaserJet 1188 Series

Board Material
FR-4 Epoxy Glass

HP 1188 FNW LOGIC CARD Trade Information

Minimum Order Quantity
1 Piece

FOB Port
mumbai

Payment Terms
Cash Against Delivery (CAD)

Supply Ability
1000 Pieces Per Month

Delivery Time
3 Days

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About HP 1188 FNW LOGIC CARD

The HP 1188FNW Logic Card, also known as the Formatter Board or Main PCB Board, is the main controller board of the printer. It manages all major printer operations including print processing, scanner communication, USB connectivity, Wi-Fi networking, and overall system control. This board is commonly replaced when the printer experiences startup failure, communication issues, motherboard faults, or printing errors.

Key Features

Compatible with HP Laser MFP 1188FNW series printers
Supports print, scan, copy, USB, Ethernet, and Wi-Fi functions
Original refurbished / pulled working board
Fully tested before dispatch
Stable and reliable performance
Easy replacement and installation

Compatible Models

HP Laser MFP 1188FNW

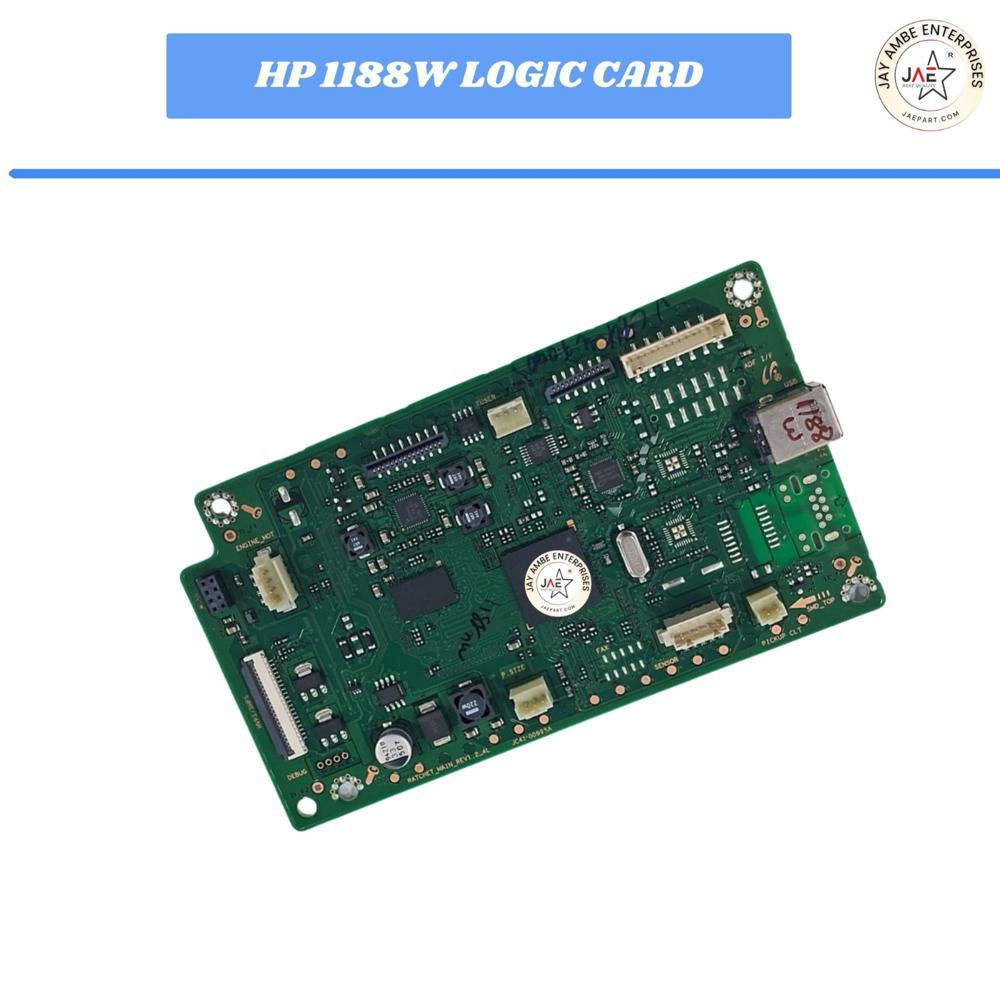

HP Laser MFP 1188W
HP Laser MFP 1188NW
HP Laser MFP 1188A

Part Numbers

SL-M2090NW
SL-M2091
SL-M2091W

Also Known As

Formatter Board
Logic Card
Main PCB Board
Motherboard
MPCA Board
USB Main Board

Common Problems Solved

Printer not powering on
Printer hanging or restarting
USB / Wi-Fi / Ethernet not detecting
Printing communication failure
Scanner detection issue
Mainboard fault

Product Condition

Refurbished Original
Pulled from working printer
Professionally cleaned and tested

Package Includes

For the HP Laser MFP 1188fnw, the logic card is also called:
- Formatter Board
- Main PCB
- Motherboard
- USB Board
Common compatible board numbers:
- SL-M2090NW
- SL-M2091
- SL-M2091W

Engineered for Reliability

Constructed from sturdy FR-4 epoxy glass, the HP 1188 FNW LOGIC CARD boasts a durable PCB designed to withstand operational demands in various environments. Its standard layout and superior circuit precision help maintain seamless communication within your HP LaserJet 1188 printer.

Seamless Integration and Compatibility

Optimized for HP LaserJet 1188 Series, this logic card ensures effortless integration. Its five connectors and wired/network connectivity allow consistent, reliable performance, helping enhance your printer's efficiency. Ideal as a replacement, it aligns with HP's print technology standards.

Easy Installation and Quick Delivery

To guarantee reliable operation, professional installation is recommended. The product is lightweight with a standard size, and ships within 1-3 days to ensure minimal downtime for your printing tasks. Full instructions for use and storage are included to maintain longevity.

FAQ's of HP 1188 FNW LOGIC CARD:

Q: How do I install the HP 1188 FNW LOGIC CARD in my printer?

A: Professional installation is recommended for the HP 1188 FNW LOGIC CARD to ensure proper functionality and avoid potential damage. Consult a certified technician or service provider familiar with HP LaserJet 1188 Series models.

Q: What are the storage and handling requirements for this logic card?

A: The logic card should be stored in a dry environment to prevent moisture damage. Handle the board with care, and avoid touching connector surfaces to maintain optimal performance.

Q: When should I consider replacing my existing logic card with the HP 1188 FNW model?

A: Replace your logic card when experiencing persistent printing errors, hardware malfunction, or after diagnosing a damaged PCB in your HP LaserJet 1188 Series printer. The aftermarket 1188 FNW is compatible and designed to restore printer functionality.

Q: Where is the HP 1188 FNW LOGIC CARD used and who can benefit from it?

A: This card is exclusively used in HP LaserJet 1188 Series printers. Dealers, distributors, importers, technicians, and end users seeking reliable printer repairs or upgrades will benefit from this reliable component.

Q: What is the process for ensuring my new logic card is functioning properly?

A: Once installed, power on the printer and run a self-test or diagnostic page. Ensure the printer completes the test without errors. If issues persist, verify connector placement and consult a professional technician.

Q: How does the HP 1188 FNW LOGIC CARD improve printer performance?

A: Featuring a high-precision circuit and durable PCB material, this logic card enhances communication between printer components, providing stable operation and supporting consistent print quality.

Q: What are the main benefits of choosing this aftermarket replacement logic card?

A: The aftermarket HP 1188 FNW offers cost-effective performance while meeting OEM compatibility standards. Its quick shipment, robust construction, and standard capacity make it a practical choice for printer maintenance and repair.
