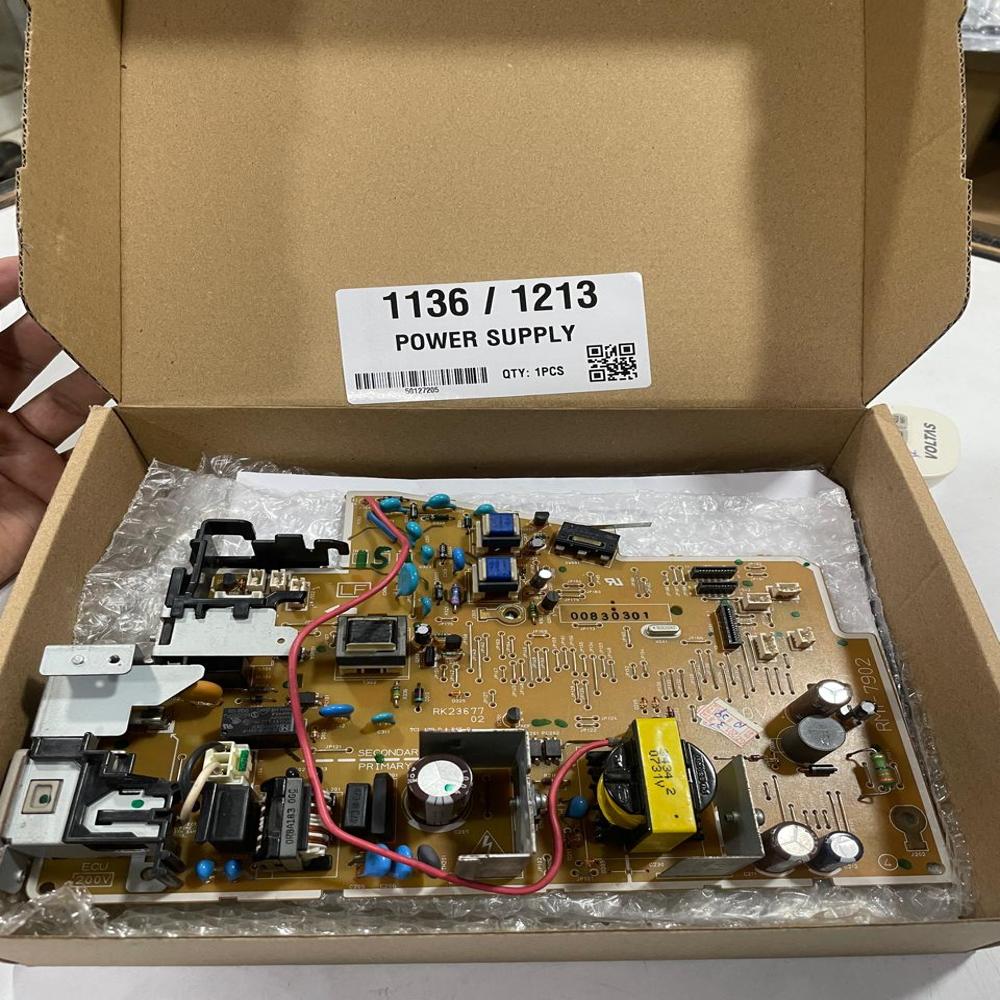

HP 1136 / 1213nf Printer Power Supply Board

HP 1136 / 1213nf Printer Power Supply Board Specification

Size
Standard fit for model

Weight
Approx. 110g

Height
Approx. 2.5 cm

Storage Instructions
Store in a dry, dust-free environment

Pattern
PCB Circuit Pattern

Power Source
AC (Direct Board Replacement)

Year Built
2023

Features
Original replacement part, stable voltage, high durability

Printer Type
Laser Printer

Model No
HP 1136/1213nf Power Supply Board

Print Technology
Laser

Color
Green

For Use In
HP LaserJet Pro M1136 / M1213nf printers

Compatible Brand
HP

Product Type
Power Supply Board

Lead Time
1-3 working days

Capacity
Standard

Output Voltage
24V / 5V DC (Dual output)

Lifespan
Designed for prolonged operational cycles

Operating Temperature
0C to 40C

Condition
Brand New

OEM/Aftermarket
OEM

Part Number
RC2-9894 / RM1-7637

Input Voltage
220V AC

Application
Used for replacing faulty power supply boards

Mount Type
Screw-on PCB mounting

About HP 1136 / 1213nf Printer Power Supply Board

The HP LaserJet Pro M1136 power supply (commonly RM1-7902 or RM1-7594) is a Switch Mode Power Supply (SMPS) board, typically featuring 110V-240V AC input and a 12V DC output, designed to power the engine and scanner assembly. It provides stabilized power and is compatible with M1130/M1210 series printers, often featuring overload and surge protection.

Key Specifications & Description

Part Numbers: Often referred to by RM1-7902 or RM1-7594.
Type: Switch Mode Power Supply (SMPS) / DC Board.
Input Voltage: 100V - 240V AC, 50Hz.
Output Voltage: Primarily 12V DC and sometimes 24V DC.
Compatibility: HP LaserJet Pro M1136, M1130, M1132, M1212NF, M1213NF, M1216, M1218 printers.
Protection: Integrated overload, surge, and short-circuit protection.
Weight: Approximately 475-800 grams.
Construction: High-quality components (capacitors, transformers) on a durable

Notes

It is a high-voltage assembly board (often labeled LVPS - Low Voltage Power Supply).
Provides power for the formatter board, laser scanner, and motors.

Superior Quality OEM Power Solution

This power supply board is an authentic OEM component, ensuring quality and full compatibility with HP LaserJet Pro M1136 and M1213nf printers. Its robust design and original circuit patterns guarantee consistent electrical performance, contributing to a dependable and stable printing workflow in professional environments.

Fast Installation and Reliable Operation

Designed with screw-on PCB mounting, the HP power supply board offers a straightforward replacement process. The standard fit and precise design allow technicians or users to quickly install the board, minimizing downtime. This part provides steady voltages (24V/5V DC), optimized for laser print technology and prolonged operation.

FAQ's of HP 1136 / 1213nf Printer Power Supply Board:

Q: How do I install the HP 1136 / 1213nf Printer Power Supply Board?

A: To install, switch off your printer and open the access panel to reach the existing power supply board. Unscrew the faulty board, replace it with the new unit using the standard screw-on mounts, connect the necessary cables, and secure the fit. Always consult your printer's service manual for exact installation steps.

Q: What makes this board suitable for HP M1136 and M1213nf printers?

A: This is an OEM part designed specifically for the HP LaserJet Pro M1136 and M1213nf models. It matches the technical requirements for voltage, size, and connection, ensuring full compatibility and reliable function as a direct replacement board.

Q: When should I consider replacing my printer's power supply board?

A: Replace your power supply board if your printer fails to power on, displays intermittent power issues, or if diagnostics confirm a faulty power supply unit. Prompt replacement can restore full printer functionality and prevent further component damage.

Q: Where can I store the new power supply board before installation?

A: Keep the power supply board in a dry, dust-free environment to prevent moisture or dust accumulation, which could affect its performance and lifespan. Preservation in an anti-static bag is also recommended for added protection.

Q: What is the process for ordering and delivery of this part in India?

A: You can order this power supply board through authorized dealers, distributors, or online suppliers in India. Standard lead time is 1-3 working days, ensuring prompt delivery for efficient printer servicing.

Q: How does using an OEM replacement power supply board benefit my printer?

A: Choosing an original OEM part guarantees stable voltage output, high durability, and a perfect fit-minimizing the risk of electrical faults, ensuring longevity, and maintaining your printer's optimal performance.
